Dumbwaiters are compact vertical transport systems that carry food, documents, and supplies between floors by moving a small car inside a shaft. While the concept has been around for more than a century, advances in machinery, controls, and safety features have made modern dumbwaiters far more reliable and versatile.
Today, they are used in restaurants, hospitals, libraries, and offices to solve the critical challenge of moving goods quickly and safely without burdening staff or risking damage.
Let’s explore what a dumbwaiter is, how it works, and what you need to know before specifying one for your project.
What Is a Dumbwaiter?
A dumbwaiter is a non-passenger elevator designed to move light goods such as meals, documents, or medications between floors. Also called a service lift, food lift, or micro freight elevator.
Unlike passenger elevators, the dumbwaiter’s car is intentionally compact—its floor area is usually under one square meter and its height under 1.2 meters. The car runs between two rigid guide rails at an angle less than 15° from vertical. Importantly, entry into the car is prohibited, and the lift is operated by landing call buttons only.
Key Features of Dumbwaiters
- Compact Size: The car is designed small, with a footprint under one square meter and a load range of 100–300 kg.
- Quiet and Smooth: With PLC or microprocessor controls, they ensure low noise and steady operation—critical in hospitals and restaurants.
- Flexible Installation: Choose between machine-room or machine-room-less designs to adapt to both new builds and renovations.
- Economical and Durable: Thanks to simple mechanics and low energy needs, dumbwaiters can last for decades with proper care.
What Are the Advantages of Dumbwaiters?
Improved Efficiency and Productivity
Dumbwaiters can significantly improve the efficiency of daily operations. Compared with manually carrying meals, documents, or supplies between floors, using a dumbwaiter is faster and more convenient. It can transport items quickly to any level of a building, saving time and allowing staff to concentrate on their core tasks instead of moving loads.
Enhanced Safety Measures
By reducing the burden of transporting items between floors, dumbwaiters minimize accidents and injuries. Equipped with safety features such as emergency stop buttons, overload protection, and secure door interlocks, they help keep operations safe and reliable.
Cost-Effectiveness
Dumbwaiters reduce labor intensity, cut downtime, and minimize the chance of accidents or damaged goods. This leads to lower operational costs and better returns over time.
Versatility and Adaptability
Dumbwaiters exist in different sizes and types, making them suitable for various settings. Whether it’s a small café, a multi-story hospital, or a large hotel, there is a dumbwaiter to fit the job. They offer flexibility not only in terms of load capacities but also in how they integrate with the building layout.
What Are the Disadvantages of Dumbwaiters?
Dumbwaiters have many benefits, but they also come with certain drawbacks:
- Limited Capacity: Dumbwaiters are not suitable for large or heavy goods beyond 300 kg.
- Underutilization Risk: If usage is infrequent, the return on investment may be modest.
- Quality Sensitivity: Poor installation or lack of maintenance can lead to noise and instability.
How Many Types of Dumbwaiters Are There?
There are several common dumbwaiter configurations that differ by car position and shaft design. The main types include floor-type, window-type, and variations by shaft structure. However, you can also choose from different finishes, sizes, and installation styles, making the available options numerous.
BDFUJI offers a wide range of dumbwaiter types to choose from, so you can find the right solution that matches the way your business operates.
Dumbwaiter Types Comparison Chart
| Dumbwaiter Type | Basic Loading Style | Features |
|---|---|---|
| Floor-type | Car opens at floor level | Allows carts or trolleys to roll in; ideal for bulkier but light goods; common in hotels and hospitals |
| Window-type | Car stops at waist height | Convenient counter-height loading; ergonomic design; popular in restaurants, cafés, and offices |
| Frame type (shaft) | Prefabricated steel shaft | Most common installation; easy and fast to install; flexible sizing; good for retrofits |
| Civil type (shaft) | Integrated into building masonry | Permanent installation; durable and stable; suited for new builds or large projects |
Floor-type Dumbwaiter

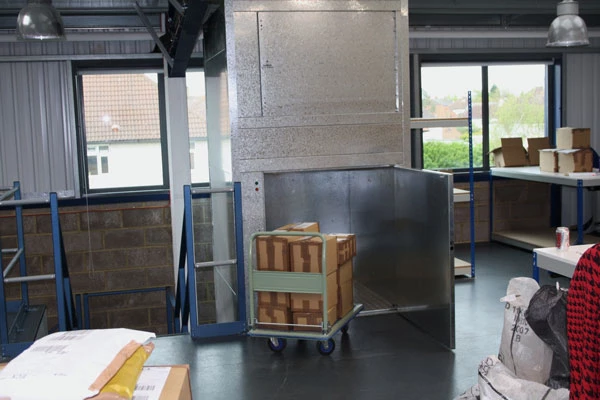

Floor-type dumbwaiters feature a car that opens at floor level, allowing carts or trolleys to roll in easily—much like a miniature freight elevator. This design is common in hotels and hospitals where staff need to move trays or carts directly into the car. Its wider opening makes it especially useful for bulkier but light goods, and the alignment with the floor surface provides smooth loading and unloading.

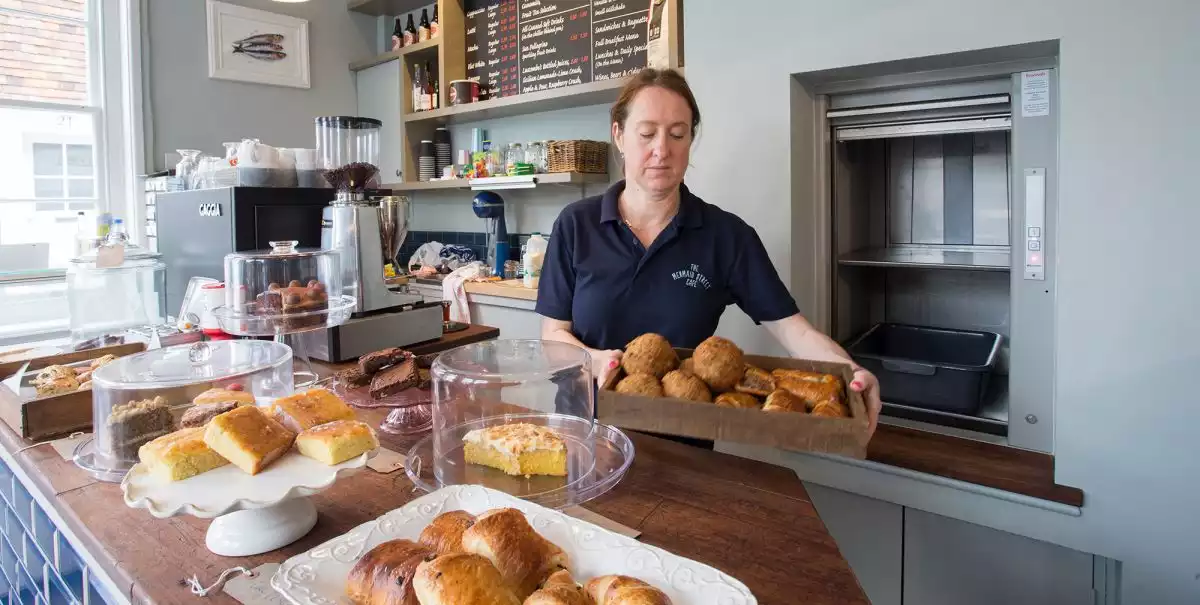

Window-type Dumbwaiter

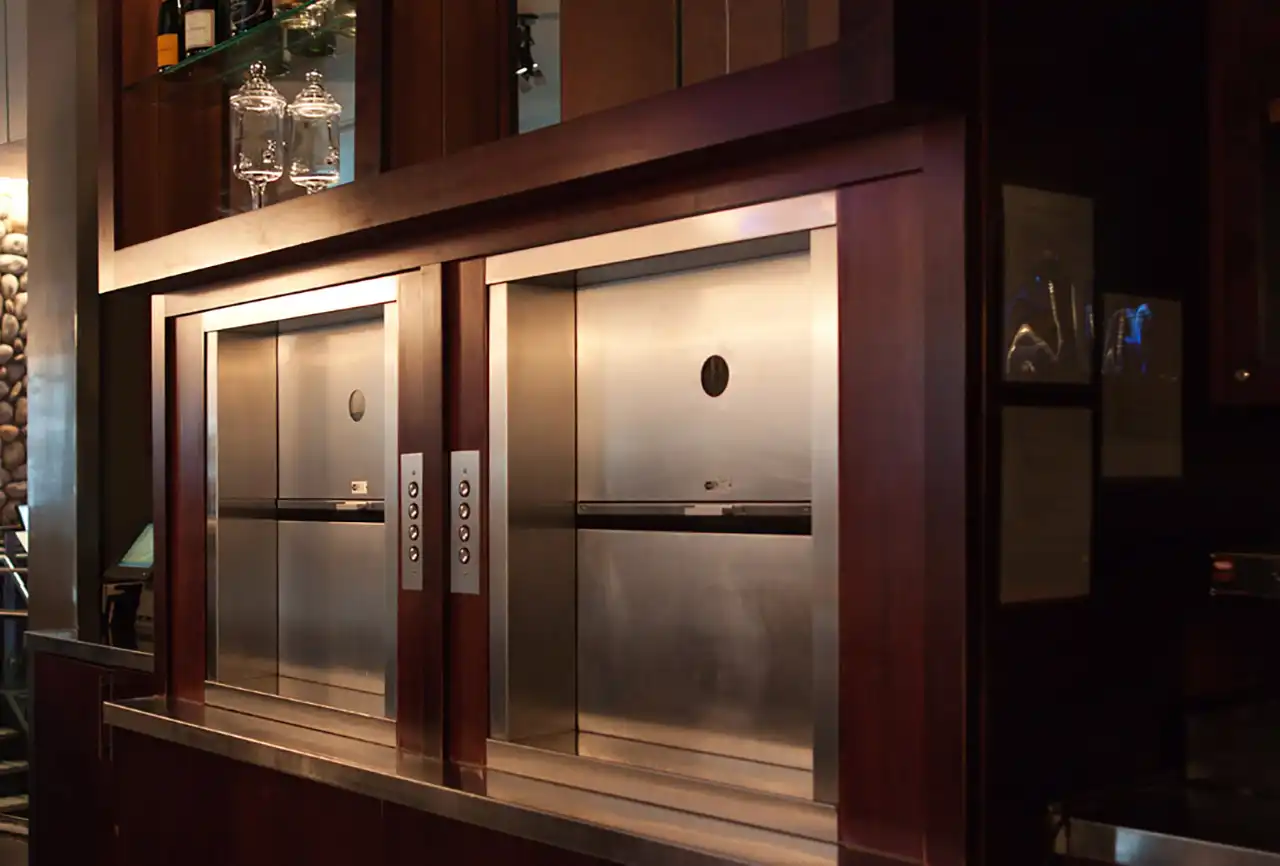

Window-type dumbwaiters feature a car that stops at waist height, functioning much like a service counter. This design allows staff to load and unload goods directly at working height, making the process fast and ergonomic. It is especially convenient for quick hand transfer of meals, documents, or small packages—avoiding the need to bend or lift awkwardly. Popular in restaurants, cafés, and offices, window-type dumbwaiters save space and provide easy access for efficient loading and unloading.
Dumbwaiters can also be classified by shaft structure: frame type (prefabricated steel shaft) vs. civil type (integrated into masonry shaft).
Frame type Dumbwaiters

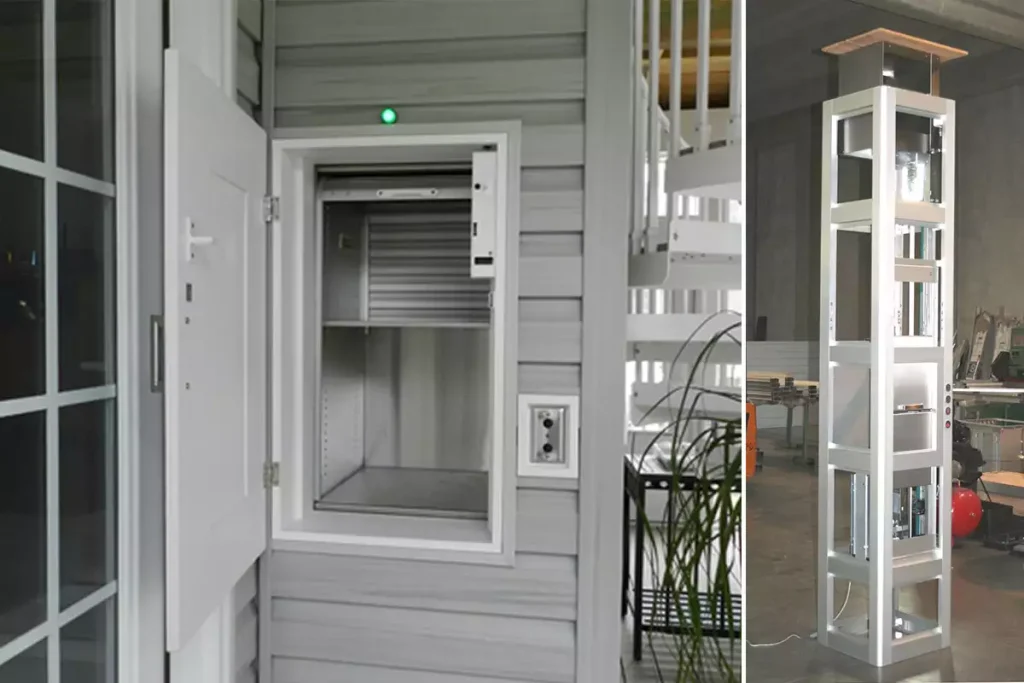

This is the most common dumbwaiter shaft installation. Frame-type dumbwaiters can be placed almost anywhere with the necessary structural support and power hookups. They are easier and faster to install than civil shafts, making them especially suitable for retrofit projects. With flexible sizing and finishes, frame-type models offer the widest range of options for restaurants, offices, and hospitals.

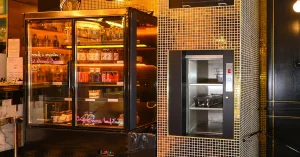

Civil type Dumbwaiters
Built directly into the building’s masonry for seamless integration and a premium look. This style offers durability and stability, often requiring custom construction work. Civil-type dumbwaiters are considered more permanent installations than frame models, making them a common choice in new builds or large-scale projects where long-term reliability is key.
These configurations allow builders and operators to choose the right type of dumbwaiter depending on building layout, load needs, and space availability.
What Is the Standard Dumbwaiter Size?
The standard dumbwaiter car is typically around 24 to 32 inches wide, 24 to 36 inches deep, and 30 to 48 inches high. These proportions are designed to fit most shaft openings in restaurants, offices, and hospitals. Load capacity generally ranges from 100 to 300 kg. Standard units provide enough space for trays, boxes, or small carts without allowing passenger entry.
Are All Dumbwaiters the Same Size?
The vast majority of dumbwaiters are designed in standard compact sizes that fit typical shaft openings. However, there are also smaller and larger dumbwaiter models available for non-standard spaces.
What Are Non-Standard Dumbwaiter Sizes?
Alternatives to standard-sized dumbwaiters include oversized models that often feature increased capacity and compact dumbwaiters designed for smaller spaces. If greater load capacity is required, facilities can also consider custom dumbwaiters built to meet unique operational needs.
Oversized Dumbwaiter Dimensions
Oversized dumbwaiters are built for facilities that need to transport heavier trays, service carts, or bulk supplies. They may extend up to 40–50 inches in width or depth while keeping the height under 48 inches, and load capacities can exceed 300 kg.
Compact Dumbwaiter Dimensions
Compact dumbwaiters are intended for very limited spaces such as cafés, private homes, or boutique shops. These units may be as narrow as 20 inches wide and 20 inches deep, with car heights around 24–30 inches. Despite their small size, they still comply with safety standards and provide efficient service for light loads.
Custom Dumbwaiter Options
For non-standard projects, dumbwaiters can be customized to match unique shaft sizes or architectural constraints. Builders often adjust dimensions to suit older buildings, retrofit projects, or special industry requirements, ensuring the dumbwaiter integrates smoothly with the available space.
How Much Does a Dumbwaiter Cost?
General Price Ranges for Dumbwaiters
- Basic window-type dumbwaiters: USD $3,000–$5,000
- Medium-sized units with moderate customization: USD $6,000–$9,000
- Larger floor-type dumbwaiters with multiple stops: USD $10,000–$15,000
The average service rate for installation and maintenance can vary between regions, but typically falls between $50 and $150 per hour for standard services, and higher for specialized projects.
Factors Influencing Dumbwaiter Prices
Various elements significantly impact the cost of dumbwaiters, including the unit’s size, complexity, and building requirements. The price is primarily determined by variables such as shaft conditions, load rating, design choices, and installation scope.
Size and Load Capacity
The larger the car and the higher the load rating, the more material and structural support is needed, which increases cost. Small units for light loads are less expensive, while heavy-duty models raise the price.
Design Type
Choosing between a machine-room or machine-room-less (MRL) design has cost implications. MRL models can save space but often require more advanced engineering, slightly raising the price.
Finishing Materials
Premium finishes like stainless steel or powder coating add durability and hygiene but also increase material and fabrication costs.
Number of Stops and Shaft Complexity
More stops, irregular shaft shapes, or challenging building conditions add to installation time and expenses. Simple two-stop systems are cheaper than multi-stop hospital installations.
Local Labor and Compliance Costs
Labor rates and regulatory compliance vary by region. Areas with stricter safety standards or higher labor costs will see higher installation prices.
Applications and Uses of Dumbwaiters
Most of the current demand for dumbwaiters comes from commercial and institutional settings such as restaurants, hotels, and hospitals. In these environments, dumbwaiters have become a simple, proven solution for moving small loads between floors.
Restaurants and Hotels
Dumbwaiters, often called food elevators in this setting, shuttle meals, trays, or utensils between floors. This keeps kitchens organized and dining service fast.
Applications:
- Hot meal delivery
- Clean and dirty dish transfer
- Catering support
Hospitals and Clinics
Dumbwaiters deliver medications, blood samples, or sterile packs while minimizing human handling and cross-contamination.
Applications:
- Medicine and sample transport
- Sterile pack delivery
- Lab support
Libraries and Offices
Dumbwaiters transfer books, files, and archives safely, reducing manual handling of heavy volumes or sensitive documents.
Applications:
- Book circulation
- Archive management
- Inter-office mail
Factories and Workshops
Dumbwaiters move light tools, spare parts, or paperwork across departments, improving coordination on the shop floor.
Applications:
- Small parts transport
- Tool delivery
- Production paperwork
How to Install a Dumbwaiter？
Before you start — what do you need to install a dumbwaiter?
To set up a dumbwaiter, coordination between the builder, electrician, and elevator manufacturers is required. Make sure the following conditions are in place before installation begins:
- A shaft with enough space and vertical deviation no greater than ±20 mm.
- A base floor strong enough to handle at least 5000 N/m² of load.
- A three-phase, five-wire power supply connected to the control box.
- Accessible openings for inspection and maintenance once the unit is in place.
Installing a dumbwaiter is a task that involves preparing the shaft, assembling key components, connecting power, and running safety tests to ensure the lift functions properly. If you’re installing a dumbwaiter for the first time, expect the process to take several hours, especially if the shaft needs to be prepared from scratch. Be sure to have the assistance of at least one other person, as you will need to lift and align heavy components during installation. Get a feel for the process with these step-by-step directions below in addition to your product manual instructions, as installation steps may vary by model.
Supplies and Tools for Dumbwaiter Installation
| Supplies | Tools |
| Dumbwaiter parts kit (car, rails, traction machine, control box) | Cordless drill and bits |
| Power supply cables | Adjustable wrench and socket set |
| Safety gear (gloves, helmet, harness) | Screwdrivers |
| Lubricants and cleaning materials | Level and measuring tape |
| Pliers | |
| Welding tools or anchors (for shaft setup) | |
| Utility knife |
Dumbwaiter installation steps
Step 1: Measure and Prepare Shaft Dimensions
Before starting, confirm the shaft matches the required width, depth, and vertical tolerance (±20 mm). The base must support at least 5000 N/m² of load. Mark door openings and inspection hatches.
Step 2: Install Shaft Structure
For frame-type dumbwaiters, assemble and anchor the prefabricated steel frame into place. For civil shafts, ensure masonry walls are prepared with embedded supports. Verify vertical alignment with a level.
Step 3: Place Traction Machine and Buffers
Position the traction machine on its mount, typically at the top of the shaft, with vibration pads in place. Fix car and counterweight buffers at the bottom. Check bolt torque for stability.
Step 4: Mount Guide Rails and Assemble the Car
Install guide rails section by section, staggering joints for strength. Attach rail brackets firmly to the shaft wall. Then, assemble the dumbwaiter car panels (floor, walls, roof) and secure it onto the rail system.
Step 5: Install Doors and Safety Interlocks
Fit landing doors at each stop, ensuring they align perfectly with the car entrance. Install mechanical locks and electric interlocks so the dumbwaiter only moves when doors are closed.
Step 6: Connect Electrical Wiring
Route cables from the control box to the traction machine, interlocks, and call buttons. Follow the wiring diagram in the manual. Connect a three-phase, five-wire power supply to the main control box.
Step 7: Run Safety and Load Tests
Test limit switches, emergency stop buttons, and overload protection. Run the dumbwaiter empty for several cycles, then test with loads up to rated capacity. Adjust balance weights and braking system as needed.
All work must comply with national safety codes such as JG135-2000, and installation should be supervised or carried out by certified professionals.
Dumbwaiter Maintenance Requirements
Regular maintenance is critical for safe and efficient dumbwaiter operation. Refer to these key requirements to keep your system in proper condition.
- Every 15 days: Perform cleaning, lubrication, and functional checks.
- Every 6 months: Conduct a thorough inspection and adjustment by qualified personnel.
- Every year: Arrange for a certified inspection to confirm continued compliance and safety.
Neglecting these requirements increases the risk of malfunction and potential liability, even though dumbwaiters are not designed to carry people.
