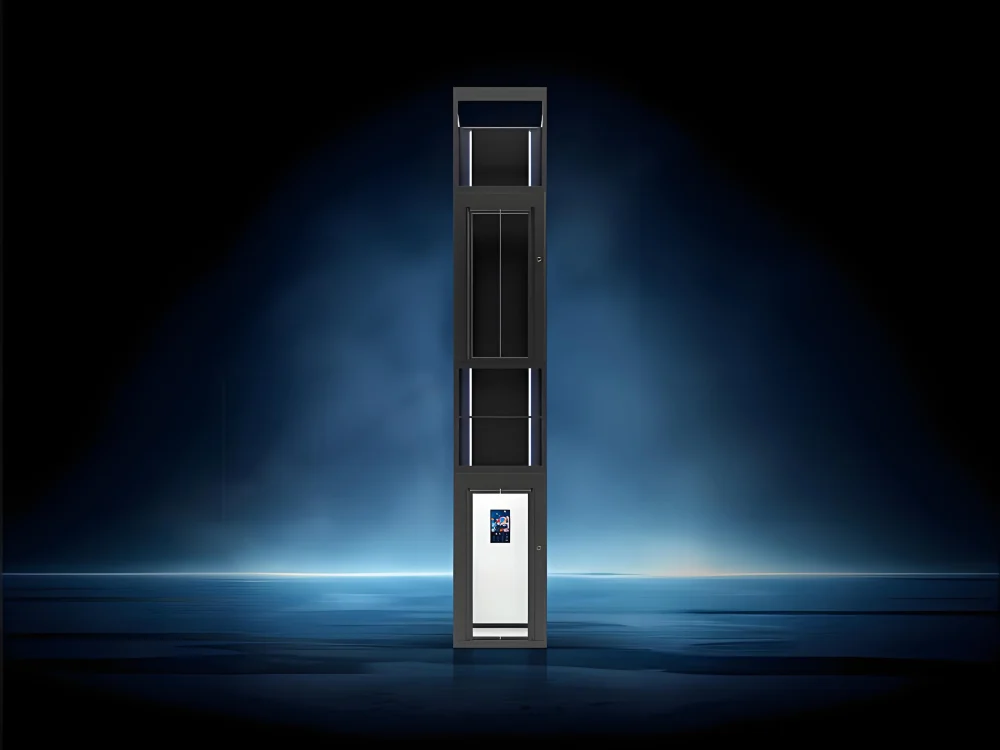

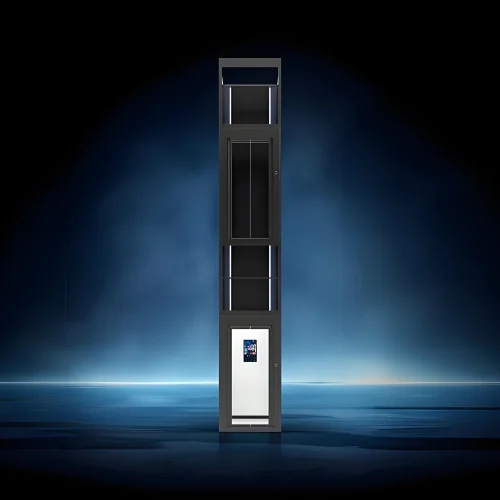

Residential Outdoor Elevator
The BDFUJI Residential Outdoor Elevator is a compact, weather-resistant lift designed for houses, villas, and townhomes. With rust-proof doors, sealed controls, and a fully enclosed shaft, it delivers safe, year-round accessibility without taking up indoor space.
- Description
- Core Technology
- Comparison with Other Brands
- BDFUJl Elevator Function
- Product Brochure
- After-sales and support
- FAQ
Our Residential Outdoor Elevator is the perfect solution for houses, villas, and townhomes where indoor space is limited. Built with a compact footprint starting from just 1100 × 1000 mm, it combines comfort, safety, and weather resistance in one modern design.
Every detail is made for outdoor living. The slanted roof protects against rain and snow, while optional door canopies in plexiglass or steel add extra shielding. Rust-proof aluminum or glass doors create a sleek look, and the sealed call buttons and controls stay reliable in any weather. The elevator travels inside a fully enclosed glazed or steel shaft with an anti-corrosion base, and the flood-protected electrical compartment ensures safe operation.
Designed to work between -10°C and +30°C, this elevator is ideal for year-round use. For harsher climates, optional heating or cooling systems can be added to guarantee smooth performance.
Product Specifications
Core parameters
| Application | Residential (houses, villas, townhomes) |
|---|---|
| Capacity | 500–750 lbs (custom options available) |
| Max Travel Distance | 14 ft (extended options available) |
| Speed | 0.3–0.4 m/s (≈ 15 ft/min) |
| Overhead Requirement | Minimum 90 inches |
| Drive Type | Traction with steel belt |
| Motor | Energy‑efficient gearless traction motor |
| Cabin Height | 76 inches standard |
| Platform Size | Starting from 1100 × 1000 mm (custom sizes on request) |
| Power Supply | 220V / single‑phase (customizable) |
| Pit Depth | No pit required (optional shallow pit for smoother entry) |
| Operating Temperature | -10°C to +30°C (optional heating/cooling for harsh climates) |
| Warranty | 2 years for the entire elevator, 5 years for the drive system and controller |
* Specifications may vary by model and local code requirements.
Safety Features
| Emergency Stop | Inside cabin for quick control |
|---|---|
| Lighting | LED lighting in cabin; clear visibility |
| Flooring | Anti‑slip design for safe footing |
| Electrical Compartment | Flood‑protected for outdoor safety |
| Controls | Sealed, weather‑resistant call buttons |
| Door Interlocks | At every landing (Honeywell optional) |
| Backup Power | Battery lowering in case of power outage |
Options & Customization
| Doors | Rust‑proof aluminum or glass (swing or sliding) |
|---|---|
| Door Canopy | Plexiglass or steel canopy |
| Shaft | Fully enclosed glazed or steel shaft; anti‑corrosion base |
| Finishes | Custom powder‑coat colors (RAL palette) |
| Controls | Key switch, RF remote, wireless key fob |
| Cabin | Clear vision wall panels; automatic door opener; auto‑return to main floor |
| Climate Add‑ons | Heater or cooling fan for extreme weather |
Outdoor Build Highlights
| Weather Protection | Slanted outdoor roof; fully weather‑resistant design |
|---|---|
| Canopies (Optional) | Plexiglass or steel door canopies for extra shielding |
| Doors | Rust‑proof aluminum or glass; modern look |
| Controls | Sealed call buttons and control panel |
| Shaft & Base | Glazed or steel shaft; anti‑corrosion base |

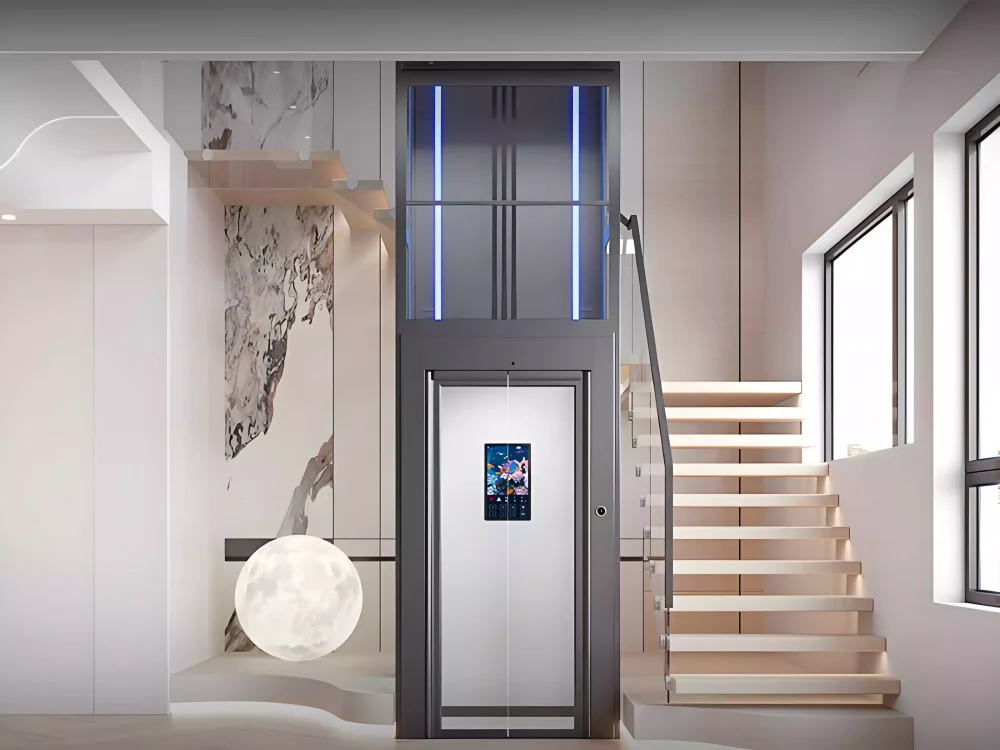

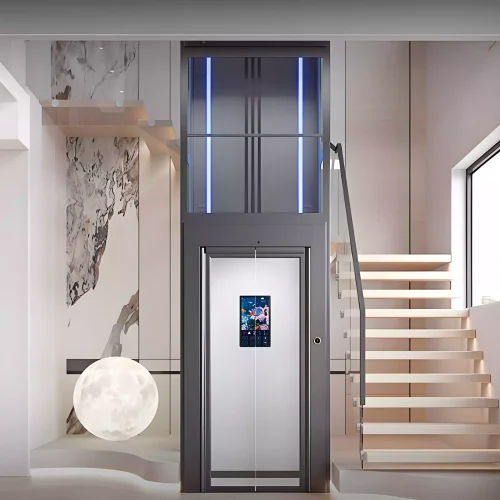

Style Matters | Modern Design Made Simple
BDFUJI has re-engineered the entire elevator structure:
-
Mechanical parts are hidden inside the shaft for a clean look
-
A rear panel conceals the frame, creating a seamless design
-
A minimalist style that rivals modern home appliances
Your elevator is no longer just transportation — it becomes part of your home’s interior design.

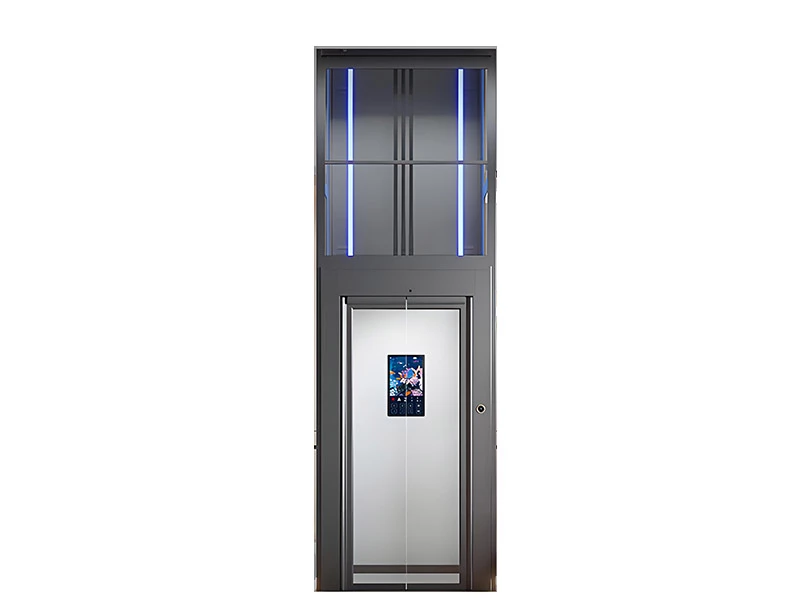

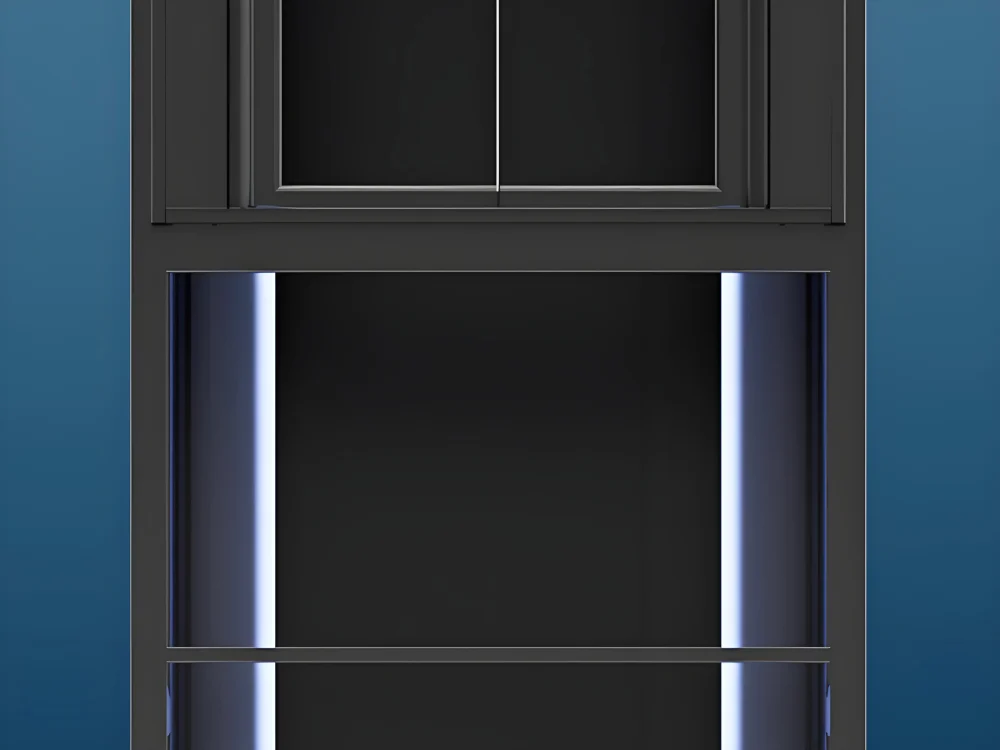

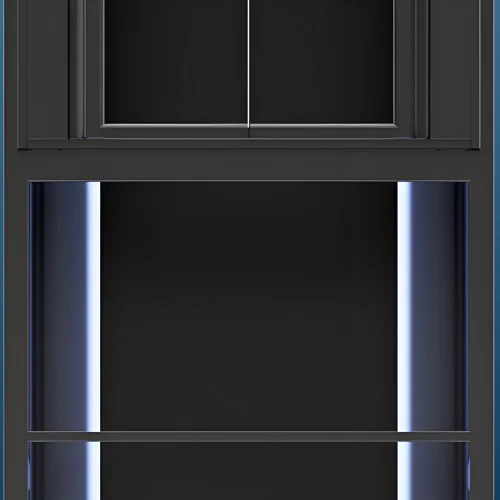

Rear Shaft Panel Design
All mechanical parts and the frame are hidden from view. LED light strips on both sides brighten the space, creating a premium, high-end appearance.

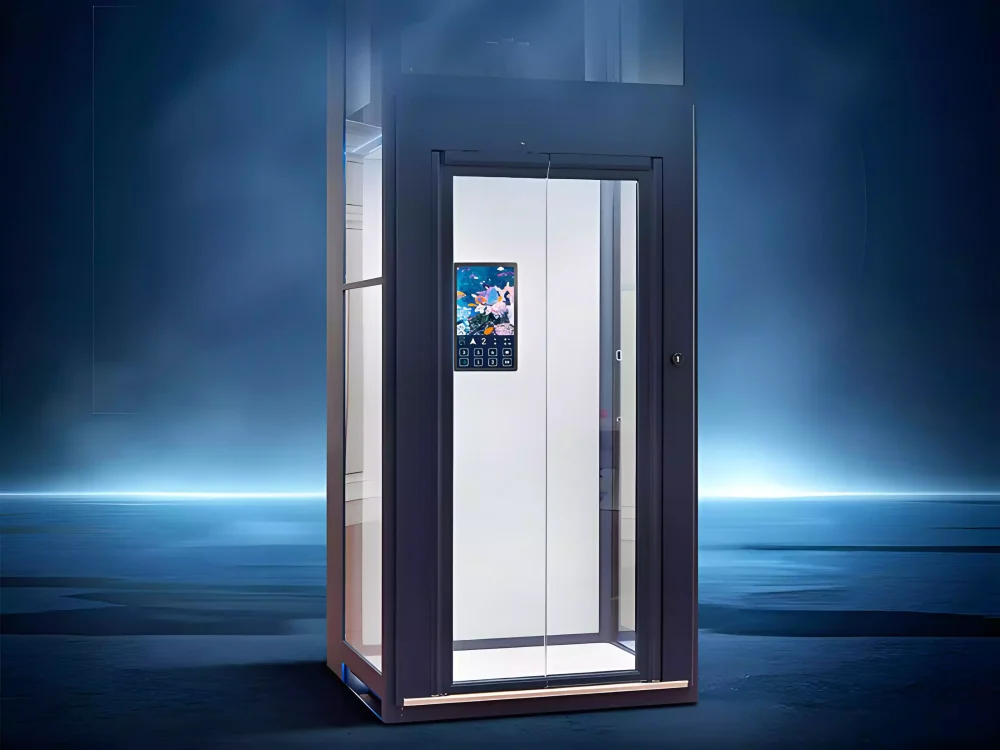

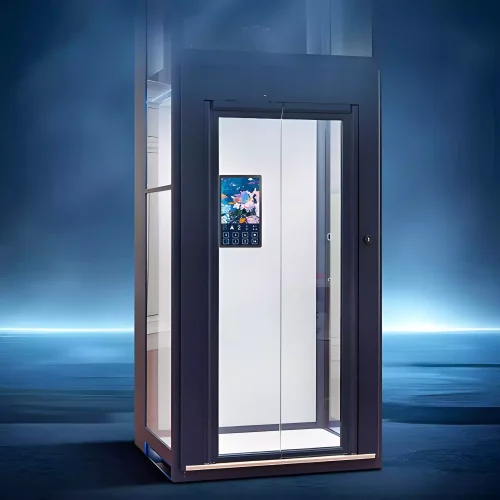

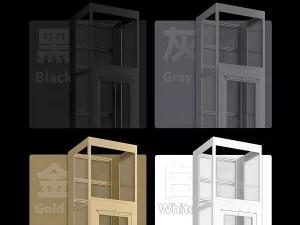

Aluminum Shaft Options
Choose from multiple finishes to match your home. The horizontal beam design improves visual harmony, while large glass sections open up panoramic outdoor views.
Triple High-Strength Steel Belts
Upgraded from the traditional two belts to three belts, this system delivers stronger safety, stability, and ride comfort. It provides extra peace of mind for your family every time you use the elevator.
Fits Every Scenario | Designed for Your Home
Multiple cabin wall finishes are available, including glass, stone, or acrylic. Customers can also choose custom graphics and materials for a unique design, ensuring that every elevator can be one of a kind and reflect personal style.
Attention to Detail
- Custom rear wall panels: glass, stone, or acrylic
- LED light strips: adjustable brightness and color
- Touch call panels: compact and easy to use
- Swing doors: quiet electronic locks, reliable operation
- Full-height glass side panels: maximize visibility
- Manual doors: slim aluminum frames with glass choices

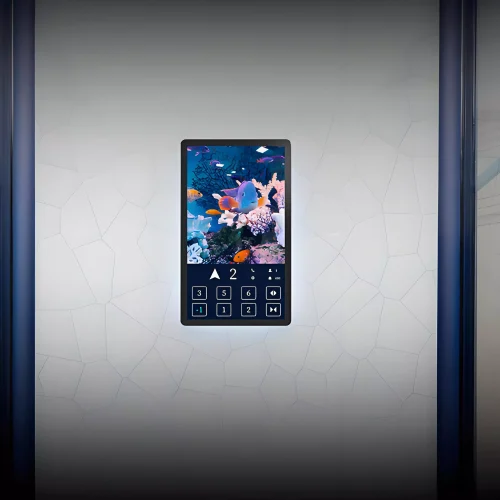

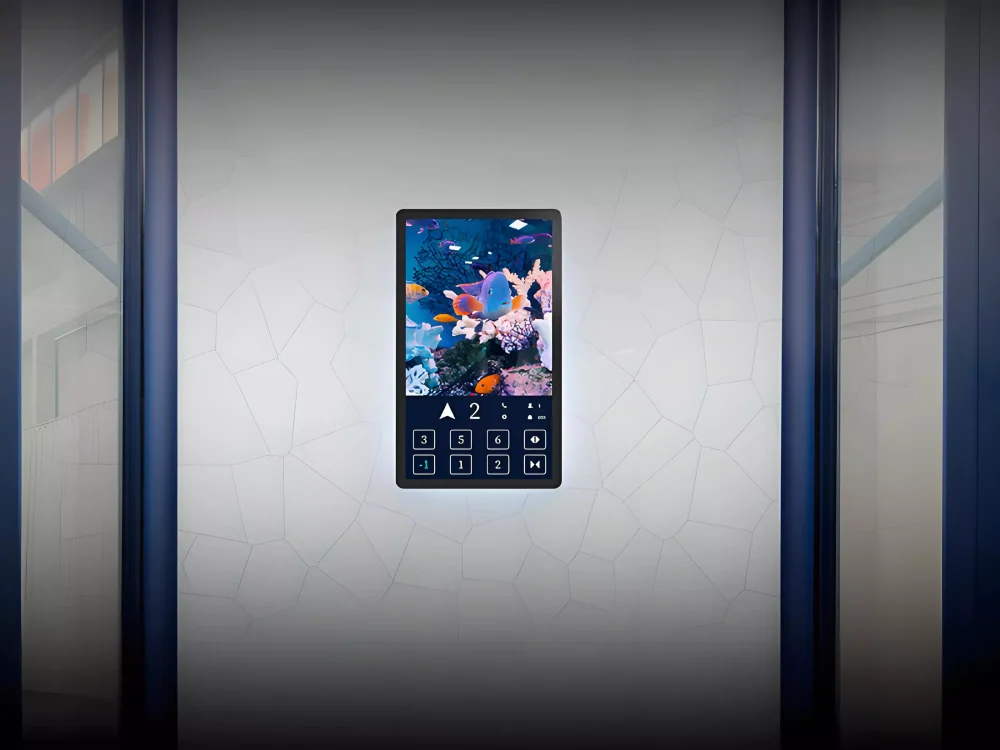

- Smart display: touchscreen control, emergency call button with stored numbers
Safety Features and Upgrades
From the base model, safety is built in with an absolute shaft positioning system, an electronic safety hook, and a hidden light curtain sensor. These features provide constant monitoring and protection during every ride. Beyond these basics, BDFUJI adds more standard upgrades, including a door protection system, an emergency leveling device, and a passenger self-rescue function. Together, these layers of protection make every ride at home worry-free.
BDFUJI Elevator
—Core Technology
BDFUJI Elevator provides customers with high-performance, high-safety and high-compatibility vertical transportation solutions with its powerful drive system, intelligent control technology and flexible space adaptation capabilities.
Intelligent Control and Security Technology
It supports multi-brand control cabinets (YASKAWA, STEP, Monarch), and integrates intelligent door machines, infrared light curtains, ultraviolet sterilization, anti-robbery doors and energy feedback technology to create dual protection of intelligence and safety.
Flexible Space Solutions
Provides two installation solutions: small machine room and no machine room, to maximize the adaptability to building space requirements.
Advanced Drive System
BDFUJI elevators use a new generation of permanent magnet synchronous traction machines, Italian high-performance traction motors, and steel belt mainframes of the same level as OTIS, ensuring that the elevators are powerful, energy-efficient, and have a longer lifespan.
How We Compare
A comparison between BDFUJI and other elevator brands
| Feature | BDFUJI | Mits* | Hit* | Kon* | Oti* |
|---|---|---|---|---|---|
| Permanent Magnet Gearless Traction Machine | Yes (40% energy saving) | Yes | Yes | Yes | Yes |
| Italian Montanari Traction Machine Option | Available | — | — | — | — |
| Advanced Door Operator System | Energy-saving, Japan tech | Yes | Yes | Yes | Yes |
| Control System (YASKAWA/STEP/MONARCH) | Multiple Options | Single Vendor | Single Vendor | Single Vendor | Single Vendor |
| Infrared Light Curtain | Yes (Upgraded) | Yes | Yes | Yes | Yes |
| Energy Feedback System | Yes | Limited | Yes | Limited | Yes |
| UV Sterilization System | Yes | No | No | No | Optional |
| Anti-theft Door Device | Yes | No | Optional | No | No |
| Machine Roomless Option | Yes | Yes | Yes | Yes | Yes |
| International Certification (CE, EAC, etc.) | Full | Full | Full | Full | Full |
BDFUJI Elevator
—Core Features
BDFUJI elevators provide many humanized functions, effectively reduce energy consumption, ensure passenger safety, and also provide convenient barrier-free functions to meet the needs of all types of passengers, bringing users a smart, safe, and environmentally friendly quality experience.
Energy Feedback System
BDFUJI elevators use advanced energy feedback technology to feed back excess energy during operation to the power grid, effectively reducing energy waste and lowering the cost of elevator operation for you.
Microcomputer Intelligent Group Control
Efficiently allocate elevator resources according to demand, reduce waiting time and improve transport efficiency.
Infrared Light Curtain Door Protection
The infrared curtain detects obstacles in real time and automatically prevents the door from closing when blocked.
Emergency Stop & Power Failure Self-Rescue
In case of emergency, the elevator stops level and opens the door for safe exit, ensuring continued operation.
Accessibility
Equipped with Braille buttons, voice system, and low-level panels for easier use by the elderly, children, and disabled.
Elevator Standard and Optional Functions
| Standard Functions | |
|---|---|
| Travel Functions | |
| VVVF Drive | The elevator can smoothly start and stop, ensuring comfort during operation. |
| VVVF Operator | The motor operates smoothly, responds sensitively, and ensures quiet operation. |
| Independent Running | When the elevator is empty, it will automatically run to the nearest landing to save energy. |
| Automatic Door Operation | Door open/close time is automatically adjusted according to the traffic demand. |
| Reopen with Hall Call | When the elevator door shuts prematurely, it can automatically reopen with the hall call. |
| Express Door Closing | When the elevator stops, the doors close immediately to save time. |
| Car Arrival Gong | A sound is produced when the elevator arrives at the landing, notifying passengers. |
| Direct Parking | The elevator can park directly without the need for leveling, increasing travel efficiency. |
| Safety Functions | |
| Photocell Protection | The photocell detects any obstruction in the door's path and prevents it from closing. |
| Overload Warning Stop | The elevator will stop if it is overloaded, ensuring passenger safety. |
| Inspection Operation | The elevator can operate in inspection mode for maintenance or emergency purposes. |
| Fault Self-Diagnosis | The system performs automatic checks to detect and address issues in real time. |
| Upward/Downward Run and Final Limit Protection | Prevents the elevator from exceeding safe operating limits in either direction. |
| Optional Functions | |
|---|---|
| Uninterrupted Power Supply (UPS) | In case of a power failure, the elevator continues to operate using the backup battery power. |
| Anti-Nuisance | Prevents nuisance calls by intelligently detecting when a call should be canceled. |
| Voice Announcement | The elevator can announce the current floor and other relevant information to passengers. |
| Car Monitoring | The car can be monitored for condition and functionality, ensuring safety during operation. |
BDFUJI Elevator — Product Brochure
Get our product brochure to learn more about elevator decoration configuration, civil engineering parameter requirements and elevator specifications and dimensions.
