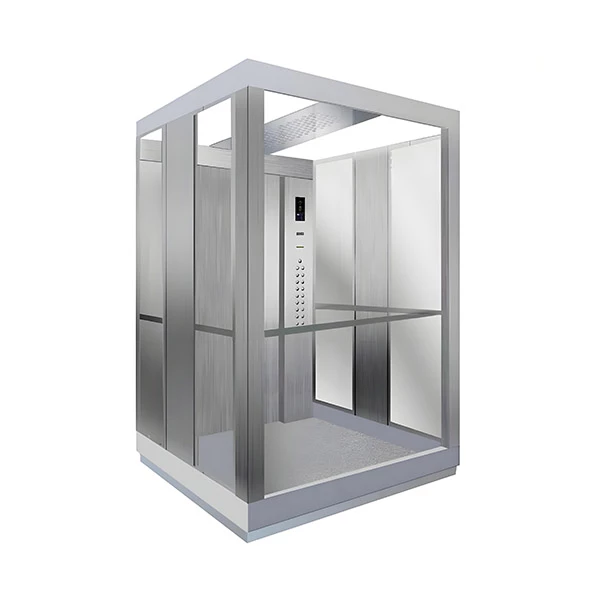

Outdoor Elevators for Commercial Environments
The BDFUJI Commercial Outdoor Elevator is a modern lift solution designed for seamless integration into existing buildings without heavy construction work. Featuring a prefabricated steel or glass shaft, it eliminates the need for a deep pit or overhead machine room, making installation simple and efficient. With customizable sizes, elegant design options, and reliable performance, this elevator is ideal for shopping malls, office towers, hotels, and other commercial spaces.
- Description
- Core Technology
- Comparison with Other Brands
- BDFUJl Elevator Function
- Product Brochure
- After-sales and support
- FAQ
BDFUJI is a professional manufacturer of commercial outdoor elevators. Our outdoor traction elevators are well-designed, easy to integrate, require minimal civil work, and offer flexible customization. With OEM/ODM capabilities, we provide reliable manufacturing services for partners who need dependable production support.
Key Advantages
Prefabricated Solution
Our elevators come with a complete prefabricated steel or glass shaft, eliminating the need for on-site shaft construction. This design removes the requirement for a deep pit or overhead machine room and greatly simplifies civil work, saving contractors both time and cost.
Customizable for Any Project
We provide seven standard sizes and also support fully customized dimensions upon request. Whether for malls, office towers, hotels, or other facilities, our elevators adapt to your project needs. We also provide OEM/ODM cooperation.
Seamless Aesthetic Integration
A variety of finishes, colors, door models, and flooring options are available. These design choices ensure the elevator blends naturally with modern commercial architecture without altering the existing building.
Manufacturer Reliability
BDFUJI delivers directly from our factory, ensuring competitive pricing and stable production capacity. All products comply with international standards such as EN81, ASME A17.1, and CE, backed by proven export experience with global partners.
Technical Specifications
| Item | Specification |
|---|---|
| Installation | Outdoor |
| Rated Load | 880 lbs (400 kg) |
| Power Supply | 230 VAC, 60 Hz, 16 AMP, Single-phase |
| Speed | Up to 30 FPM (0.15 m/s) |
| Minimum Headroom | 90 5/8 in (full-height door) |
| Pit Depth | 0″ / 2″ / 2 ¾” |
| Drive System | Traction (MRL – Machine Room-Less) |
| Maximum Travel | 110 m (≈ 361 ft) |
| Stops | Up to 35 |
| Control | Hold-to-run operation |
| Motor Power | 3 HP |
| Door Configuration | Single swing (L/R), single entry, through access, or adjacent access |
Standard Equipment
Unlike many suppliers that only provide basic setups, BDFUJI delivers high-level standard configurations as part of every commercial outdoor elevator,ensuring strong performance from the start:
-
A prefabricated steel shaft (with a glass option available) for straightforward installation
-
Tempered glass doors with concealed closers
-
Safety features including an emergency phone, stop switch, and alarm button
-
A large and simple-to-operate control panel
-
Safety edges around the platform
-
Smooth start and stop technology for stable operation
Why Partner with BDFUJI?
- Direct Manufacturer – We supply directly from our factory, ensuring competitive pricing and avoiding intermediaries.
- Flexible Customization – Solutions can be adapted to the requirements of different projects, tenders, and building types.
- OEM/ODM Cooperation – Available for global partners who want to expand their product range or outsource production with confidence.
- Reliable Capacity – Strong production capability with compliance to international standards such as EN81, ASME A17.1, and CE.
Contact BDFUJI today to discuss your project or OEM/ODM cooperation opportunities.
BDFUJI Elevator
—Core Technology
BDFUJI Elevator provides customers with high-performance, high-safety and high-compatibility vertical transportation solutions with its powerful drive system, intelligent control technology and flexible space adaptation capabilities.
Intelligent Control and Security Technology
It supports multi-brand control cabinets (YASKAWA, STEP, Monarch), and integrates intelligent door machines, infrared light curtains, ultraviolet sterilization, anti-robbery doors and energy feedback technology to create dual protection of intelligence and safety.
Flexible Space Solutions
Provides two installation solutions: small machine room and no machine room, to maximize the adaptability to building space requirements.
Advanced Drive System
BDFUJI elevators use a new generation of permanent magnet synchronous traction machines, Italian high-performance traction motors, and steel belt mainframes of the same level as OTIS, ensuring that the elevators are powerful, energy-efficient, and have a longer lifespan.
How We Compare
A comparison between BDFUJI and other elevator brands
| Feature | BDFUJI | Mits* | Hit* | Kon* | Oti* |
|---|---|---|---|---|---|
| Permanent Magnet Gearless Traction Machine | Yes (40% energy saving) | Yes | Yes | Yes | Yes |
| Italian Montanari Traction Machine Option | Available | — | — | — | — |
| Advanced Door Operator System | Energy-saving, Japan tech | Yes | Yes | Yes | Yes |
| Control System (YASKAWA/STEP/MONARCH) | Multiple Options | Single Vendor | Single Vendor | Single Vendor | Single Vendor |
| Infrared Light Curtain | Yes (Upgraded) | Yes | Yes | Yes | Yes |
| Energy Feedback System | Yes | Limited | Yes | Limited | Yes |
| UV Sterilization System | Yes | No | No | No | Optional |
| Anti-theft Door Device | Yes | No | Optional | No | No |
| Machine Roomless Option | Yes | Yes | Yes | Yes | Yes |
| International Certification (CE, EAC, etc.) | Full | Full | Full | Full | Full |
BDFUJI Elevator
—Core Features
BDFUJI elevators provide many humanized functions, effectively reduce energy consumption, ensure passenger safety, and also provide convenient barrier-free functions to meet the needs of all types of passengers, bringing users a smart, safe, and environmentally friendly quality experience.
Energy Feedback System
BDFUJI elevators use advanced energy feedback technology to feed back excess energy during operation to the power grid, effectively reducing energy waste and lowering the cost of elevator operation for you.
Microcomputer Intelligent Group Control
Efficiently allocate elevator resources according to demand, reduce waiting time and improve transport efficiency.
Infrared Light Curtain Door Protection
The infrared curtain detects obstacles in real time and automatically prevents the door from closing when blocked.
Emergency Stop & Power Failure Self-Rescue
In case of emergency, the elevator stops level and opens the door for safe exit, ensuring continued operation.
Accessibility
Equipped with Braille buttons, voice system, and low-level panels for easier use by the elderly, children, and disabled.
Elevator Standard and Optional Functions
| Standard Functions | |
|---|---|
| Travel Functions | |
| VVVF Drive | The elevator can smoothly start and stop, ensuring comfort during operation. |
| VVVF Operator | The motor operates smoothly, responds sensitively, and ensures quiet operation. |
| Independent Running | When the elevator is empty, it will automatically run to the nearest landing to save energy. |
| Automatic Door Operation | Door open/close time is automatically adjusted according to the traffic demand. |
| Reopen with Hall Call | When the elevator door shuts prematurely, it can automatically reopen with the hall call. |
| Express Door Closing | When the elevator stops, the doors close immediately to save time. |
| Car Arrival Gong | A sound is produced when the elevator arrives at the landing, notifying passengers. |
| Direct Parking | The elevator can park directly without the need for leveling, increasing travel efficiency. |
| Safety Functions | |
| Photocell Protection | The photocell detects any obstruction in the door's path and prevents it from closing. |
| Overload Warning Stop | The elevator will stop if it is overloaded, ensuring passenger safety. |
| Inspection Operation | The elevator can operate in inspection mode for maintenance or emergency purposes. |
| Fault Self-Diagnosis | The system performs automatic checks to detect and address issues in real time. |
| Upward/Downward Run and Final Limit Protection | Prevents the elevator from exceeding safe operating limits in either direction. |
| Optional Functions | |
|---|---|
| Uninterrupted Power Supply (UPS) | In case of a power failure, the elevator continues to operate using the backup battery power. |
| Anti-Nuisance | Prevents nuisance calls by intelligently detecting when a call should be canceled. |
| Voice Announcement | The elevator can announce the current floor and other relevant information to passengers. |
| Car Monitoring | The car can be monitored for condition and functionality, ensuring safety during operation. |
