BDFJ-007 Titanium mirror stainless steel passenger elevator
A passenger elevator with a titanium mirror stainless steel finish for a sleek look and lasting strength. Smooth, safe, and built to fit your building’s real needs.
- Description
- Core Technology
- Comparison with Other Brands
- BDFUJl Elevator Function
- Product Brochure
- After-sales and support
- FAQ
The titanium mirror stainless steel passenger elevator is designed for modern buildings that need both style and performance. The durable stainless steel finish with a titanium mirror surface resists scratches and keeps a bright, reflective look for years. The advanced drive and control system ensures smooth, quiet rides and high safety. With a range of cabin sizes, you only choose the capacity that fits your building’s real needs, helping you save space and cost.
Advantages of the Titanium Mirror Stainless Steel Passenger Elevator

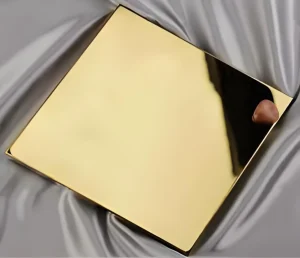

1. Smooth and Durable Titanium Mirror Finish
The titanium mirror stainless steel surface keeps its bright, reflective look while resisting scratches and stains. This strong material is easy to clean, helping the elevator stay in top condition even in busy buildings. As a result, the cabin keeps its stylish look for many years with minimal maintenance.
2. Advanced Gearless Traction Technology
The elevator uses a gearless traction system that delivers smooth acceleration and precise stopping. This technology reduces vibration and noise, creating a quiet and comfortable ride for passengers. It also lowers energy use, helping building owners save on operating costs.
3. Comprehensive Safety Features
Equipped with multiple safety systems, the elevator protects passengers in all operating conditions. Features like emergency brakes, overload sensors, and door protection work together to prevent accidents. This ensures a safe and reliable ride, day after day.
4. Flexible Cabin Size Options
The elevator can be built in various cabin sizes to match the space and capacity needs of different buildings. This allows architects and owners to choose the best fit without compromising on comfort or performance. It also helps optimize space use inside the building.
BDFUJI Passenger Elevator Series Dimensions And Specifications
| Person | Rated capacity (kg) | Rated speed (m/s) | Net size of car (mm) C.WxC.D | Net size of door (mm) D.WxD.H | Shaft size (mm) HxD | OH | PD | Maximum lift height (m) |
|---|---|---|---|---|---|---|---|---|
| 5 | 400 | 1.0 | 1100×1000 | 700×2100 | 1750×1650 | 4000 | 1350 | 35 |
| 5 | 400 | 1.5/1.75 | 1100×1000 | 700×2100 | 1750×1650 | 4100 | 1400 | 60/80 |
| 5 | 400 | 2.0 | 1100×1000 | 700×2100 | 1750×1650 | 4400 | 1500 | 100 |
| 5 | 400 | 2.5 | 1100×1000 | 700×2100 | 1750×1650 | 4600 | 1700 | 110 |
| 8 | 630 | 1.0 | 1350×1200 | 800×2100 | 2000×1800 | 4000 | 1350 | 35 |
| 8 | 630 | 1.5/1.75 | 1350×1200 | 800×2100 | 2000×1800 | 4100 | 1400 | 60/80 |
| 8 | 630 | 2.0 | 1350×1200 | 800×2100 | 2000×1800 | 4400 | 1500 | 100 |
| 8 | 630 | 2.5 | 1350×1200 | 800×2100 | 2000×1800 | 4600 | 1700 | 110 |
| 10 | 800 | 1.0 | 1500×1300 | 900×2100 | 2200×1900 | 4000 | 1350 | 35 |
| 10 | 800 | 1.5/1.75 | 1500×1300 | 900×2100 | 2200×1900 | 4100 | 1400 | 60/80 |
| 10 | 800 | 2.0 | 1500×1300 | 900×2100 | 2200×1900 | 4400 | 1500 | 100 |
| 10 | 800 | 2.5 | 1500×1300 | 900×2100 | 2200×1900 | 4600 | 1700 | 110 |
| 13 | 1000 | 1.0 | 1600×1500 | 900×2100 | 2300×2000 | 4000 | 1350 | 35 |
| 13 | 1000 | 1.5/1.75 | 1600×1500 | 900×2100 | 2300×2000 | 4100 | 1400 | 60/80 |
| 13 | 1000 | 2.0 | 1600×1500 | 900×2100 | 2300×2000 | 4400 | 1500 | 100 |
| 13 | 1000 | 2.5 | 1600×1500 | 900×2100 | 2300×2000 | 4600 | 1700 | 110 |

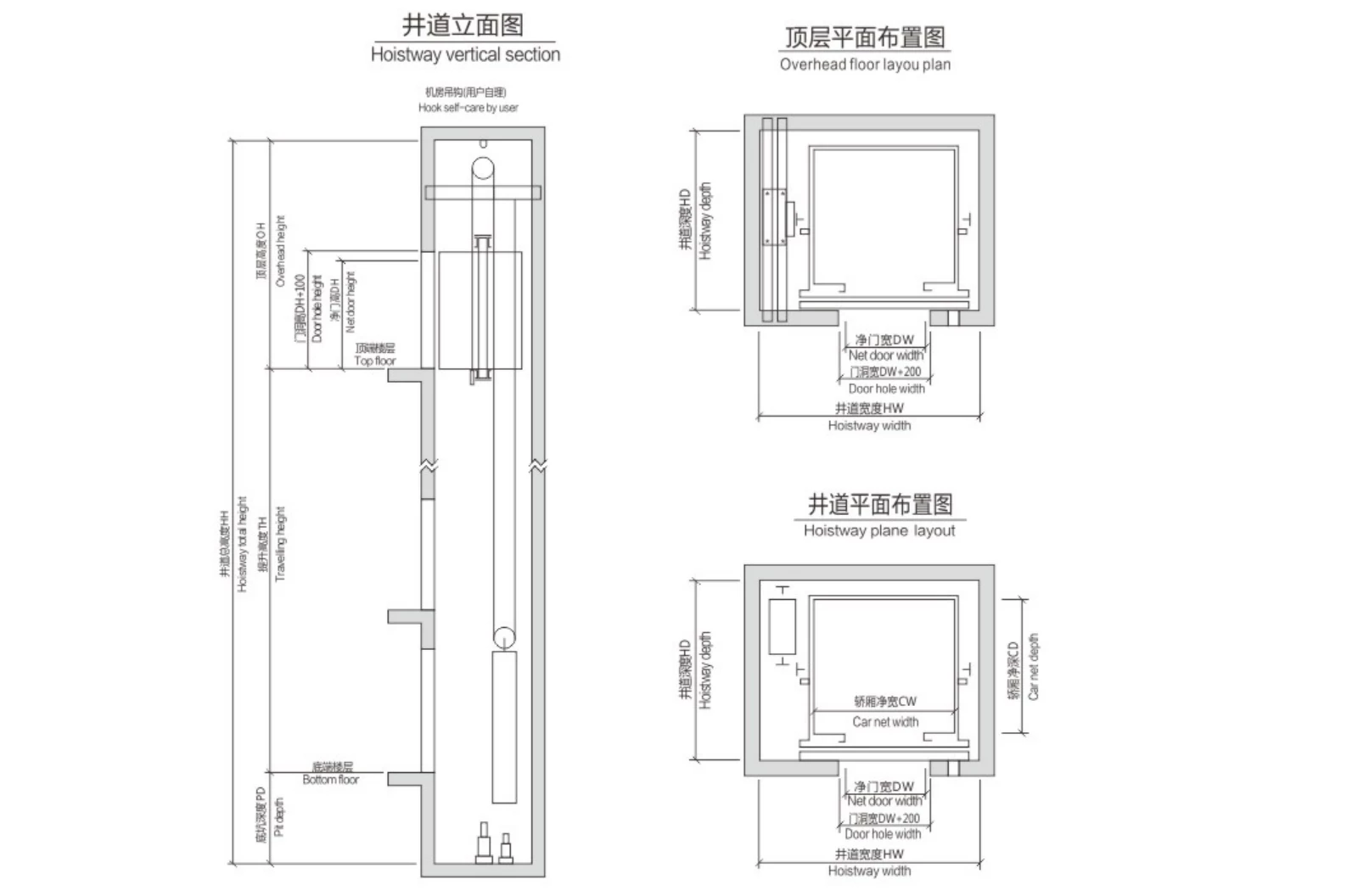

Machine Roomless Passenger Elevator Construction Layout Drawing
Applications of Titanium Mirror Stainless Steel Passenger Elevators

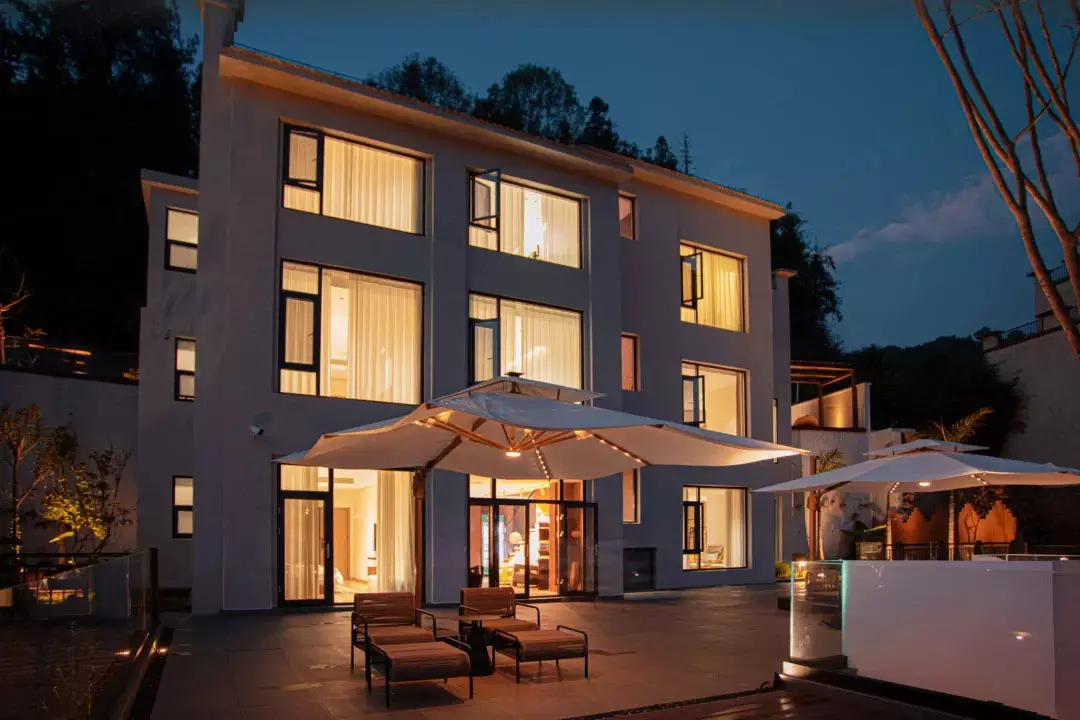

Luxury Residential Buildings
A titanium mirror stainless steel passenger elevator adds a modern and high-end look to luxury apartments. The mirror finish brightens the cabin and is easy to keep clean, while the stainless steel body ensures long-lasting durability.
High-Traffic Office Towers
Advanced gearless traction technology delivers smooth and quiet rides, even during peak hours. The strong build and low maintenance needs make it ideal for busy commercial use.

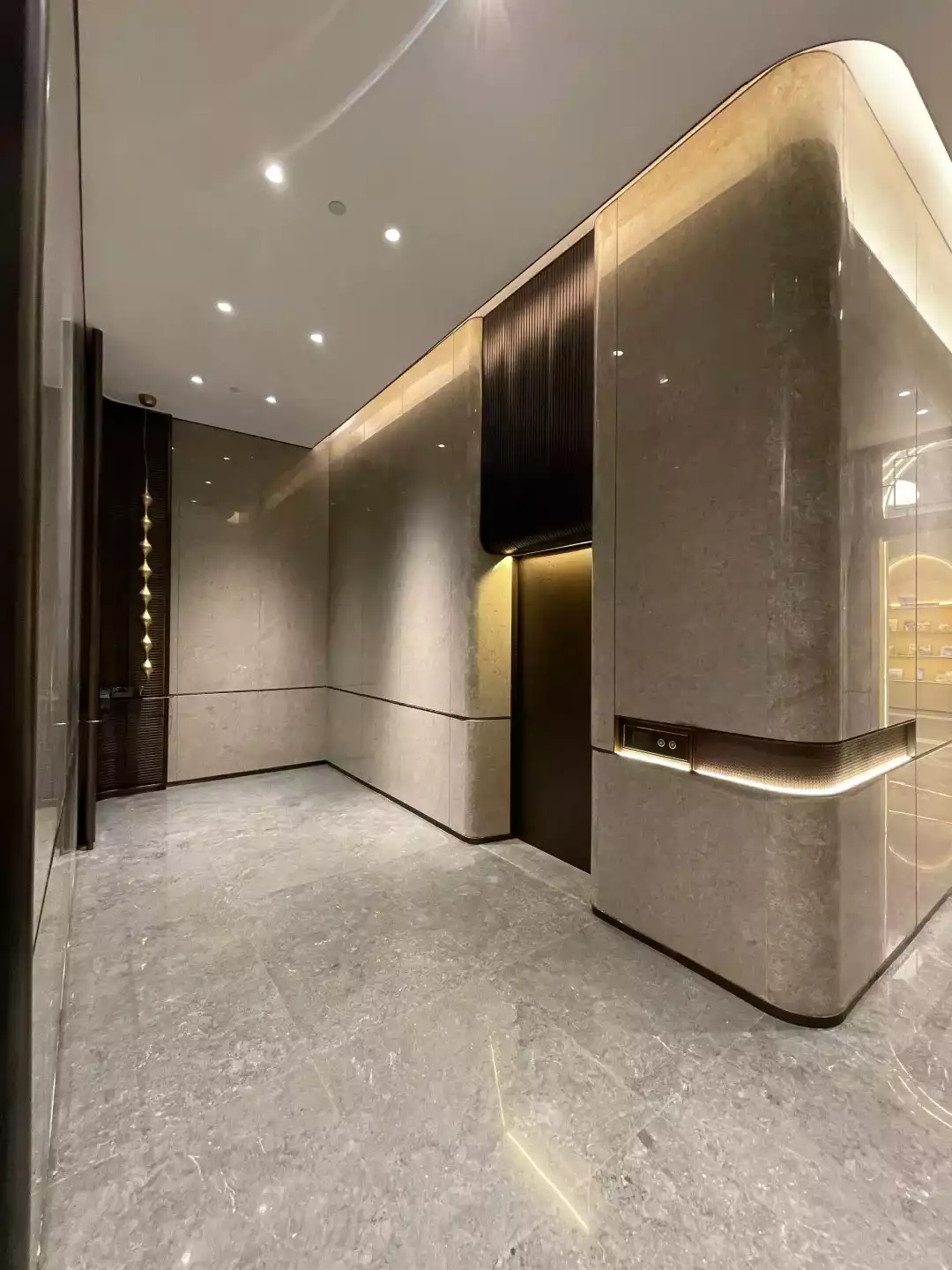

Hotels and Retail Centers
Custom cabin sizes and layouts fit different building designs. The bright mirror finish creates a welcoming experience for guests and shoppers, while safety systems meet international standards.
Hospitals and Public Facilities
Reliable performance with stable speed control ensures safe transport for patients and visitors. The stainless steel design is easy to sanitize, meeting hygiene requirements.
BDFUJI Elevator
—Core Technology
BDFUJI Elevator provides customers with high-performance, high-safety and high-compatibility vertical transportation solutions with its powerful drive system, intelligent control technology and flexible space adaptation capabilities.
Intelligent Control and Security Technology
It supports multi-brand control cabinets (YASKAWA, STEP, Monarch), and integrates intelligent door machines, infrared light curtains, ultraviolet sterilization, anti-robbery doors and energy feedback technology to create dual protection of intelligence and safety.
Flexible Space Solutions
Provides two installation solutions: small machine room and no machine room, to maximize the adaptability to building space requirements.
Advanced Drive System
BDFUJI elevators use a new generation of permanent magnet synchronous traction machines, Italian high-performance traction motors, and steel belt mainframes of the same level as OTIS, ensuring that the elevators are powerful, energy-efficient, and have a longer lifespan.
How We Compare
A comparison between BDFUJI and other elevator brands
| Feature | BDFUJI | Mits* | Hit* | Kon* | Oti* |
|---|---|---|---|---|---|
| Permanent Magnet Gearless Traction Machine | Yes (40% energy saving) | Yes | Yes | Yes | Yes |
| Italian Montanari Traction Machine Option | Available | — | — | — | — |
| Advanced Door Operator System | Energy-saving, Japan tech | Yes | Yes | Yes | Yes |
| Control System (YASKAWA/STEP/MONARCH) | Multiple Options | Single Vendor | Single Vendor | Single Vendor | Single Vendor |
| Infrared Light Curtain | Yes (Upgraded) | Yes | Yes | Yes | Yes |
| Energy Feedback System | Yes | Limited | Yes | Limited | Yes |
| UV Sterilization System | Yes | No | No | No | Optional |
| Anti-theft Door Device | Yes | No | Optional | No | No |
| Machine Roomless Option | Yes | Yes | Yes | Yes | Yes |
| International Certification (CE, EAC, etc.) | Full | Full | Full | Full | Full |
BDFUJI Elevator
—Core Features
BDFUJI elevators provide many humanized functions, effectively reduce energy consumption, ensure passenger safety, and also provide convenient barrier-free functions to meet the needs of all types of passengers, bringing users a smart, safe, and environmentally friendly quality experience.
Energy Feedback System
BDFUJI elevators use advanced energy feedback technology to feed back excess energy during operation to the power grid, effectively reducing energy waste and lowering the cost of elevator operation for you.
Microcomputer Intelligent Group Control
Efficiently allocate elevator resources according to demand, reduce waiting time and improve transport efficiency.
Infrared Light Curtain Door Protection
The infrared curtain detects obstacles in real time and automatically prevents the door from closing when blocked.
Emergency Stop & Power Failure Self-Rescue
In case of emergency, the elevator stops level and opens the door for safe exit, ensuring continued operation.
Accessibility
Equipped with Braille buttons, voice system, and low-level panels for easier use by the elderly, children, and disabled.
Elevator Standard and Optional Functions
| Standard Functions | |
|---|---|
| Travel Functions | |
| VVVF Drive | The elevator can smoothly start and stop, ensuring comfort during operation. |
| VVVF Operator | The motor operates smoothly, responds sensitively, and ensures quiet operation. |
| Independent Running | When the elevator is empty, it will automatically run to the nearest landing to save energy. |
| Automatic Door Operation | Door open/close time is automatically adjusted according to the traffic demand. |
| Reopen with Hall Call | When the elevator door shuts prematurely, it can automatically reopen with the hall call. |
| Express Door Closing | When the elevator stops, the doors close immediately to save time. |
| Car Arrival Gong | A sound is produced when the elevator arrives at the landing, notifying passengers. |
| Direct Parking | The elevator can park directly without the need for leveling, increasing travel efficiency. |
| Safety Functions | |
| Photocell Protection | The photocell detects any obstruction in the door's path and prevents it from closing. |
| Overload Warning Stop | The elevator will stop if it is overloaded, ensuring passenger safety. |
| Inspection Operation | The elevator can operate in inspection mode for maintenance or emergency purposes. |
| Fault Self-Diagnosis | The system performs automatic checks to detect and address issues in real time. |
| Upward/Downward Run and Final Limit Protection | Prevents the elevator from exceeding safe operating limits in either direction. |
| Optional Functions | |
|---|---|
| Uninterrupted Power Supply (UPS) | In case of a power failure, the elevator continues to operate using the backup battery power. |
| Anti-Nuisance | Prevents nuisance calls by intelligently detecting when a call should be canceled. |
| Voice Announcement | The elevator can announce the current floor and other relevant information to passengers. |
| Car Monitoring | The car can be monitored for condition and functionality, ensuring safety during operation. |
BDFUJI Elevator — Product Brochure
Get our product brochure to learn more about elevator decoration configuration, civil engineering parameter requirements and elevator specifications and dimensions.
BDFUJI Elevator — Provide You With Various Guarantees
2 Year Warranty
- ✔ Includes all 2-year warranty benefits
- ✔ Loss And Damage Protection
- ✔ Installation Technical Instructions
- ✔ Online Video 1V1 Guidance From Engineers
- ✔ Regular On-site Inspections By Technical Personnel
Important Elevator Parts 5-Year Warranty
- ✔ Comprehensive coverage including 2-year warranty benefits
- ✔ Theft and Damage Protection
- ✔ Priority Assistance and Support
