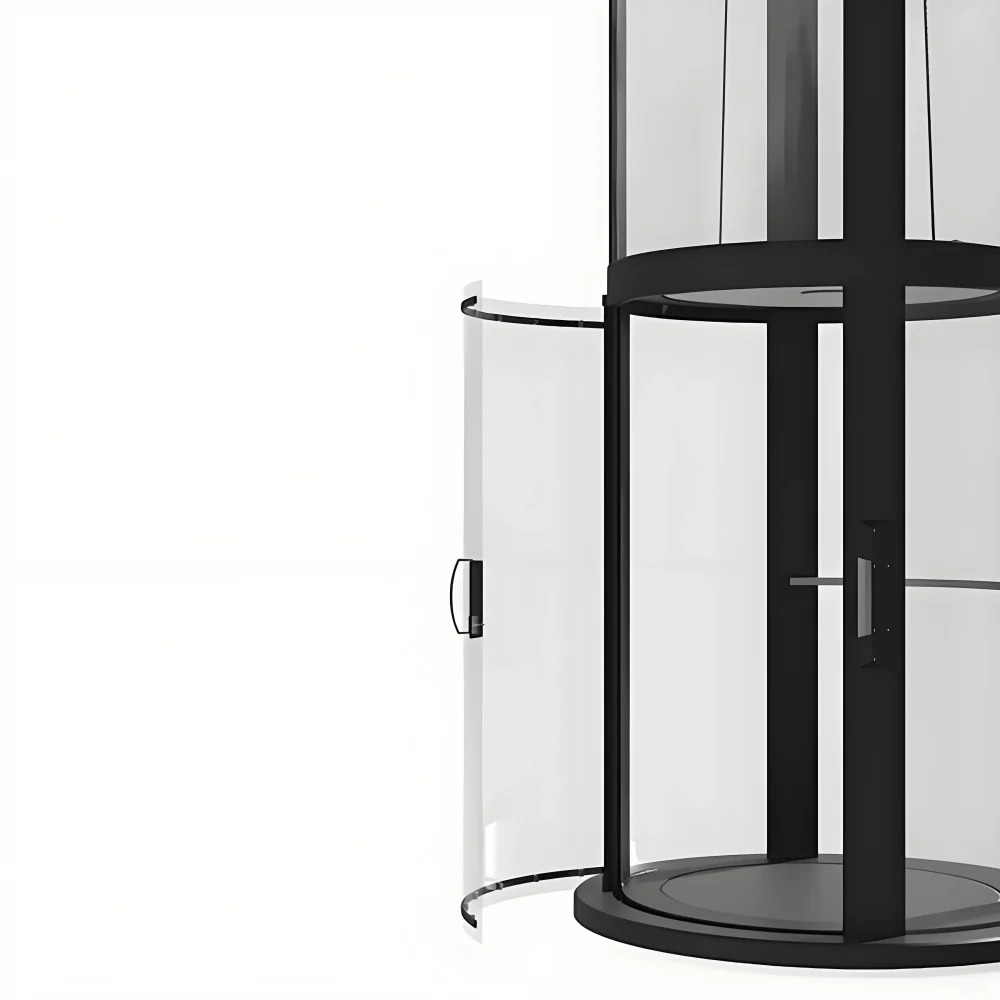

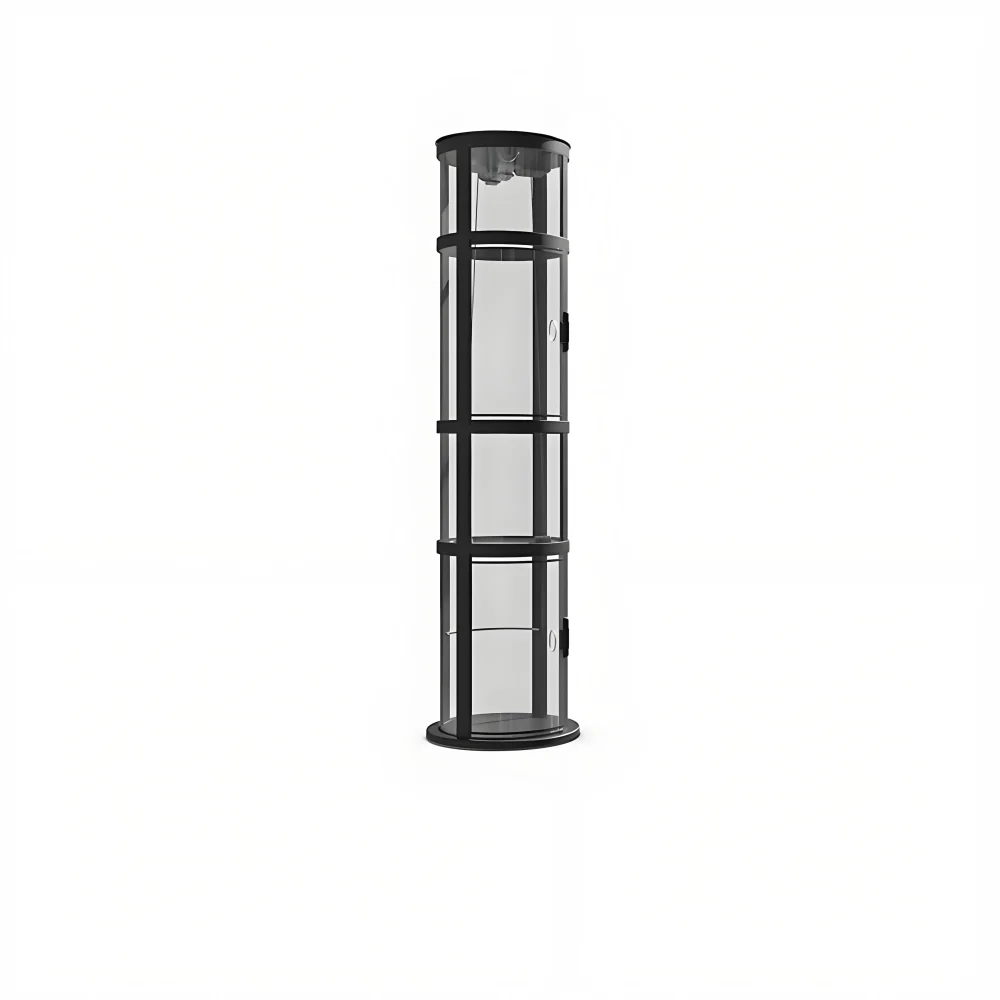

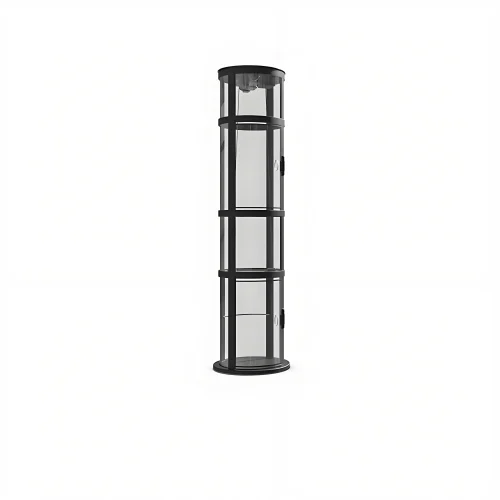

Glass Tube Elevator

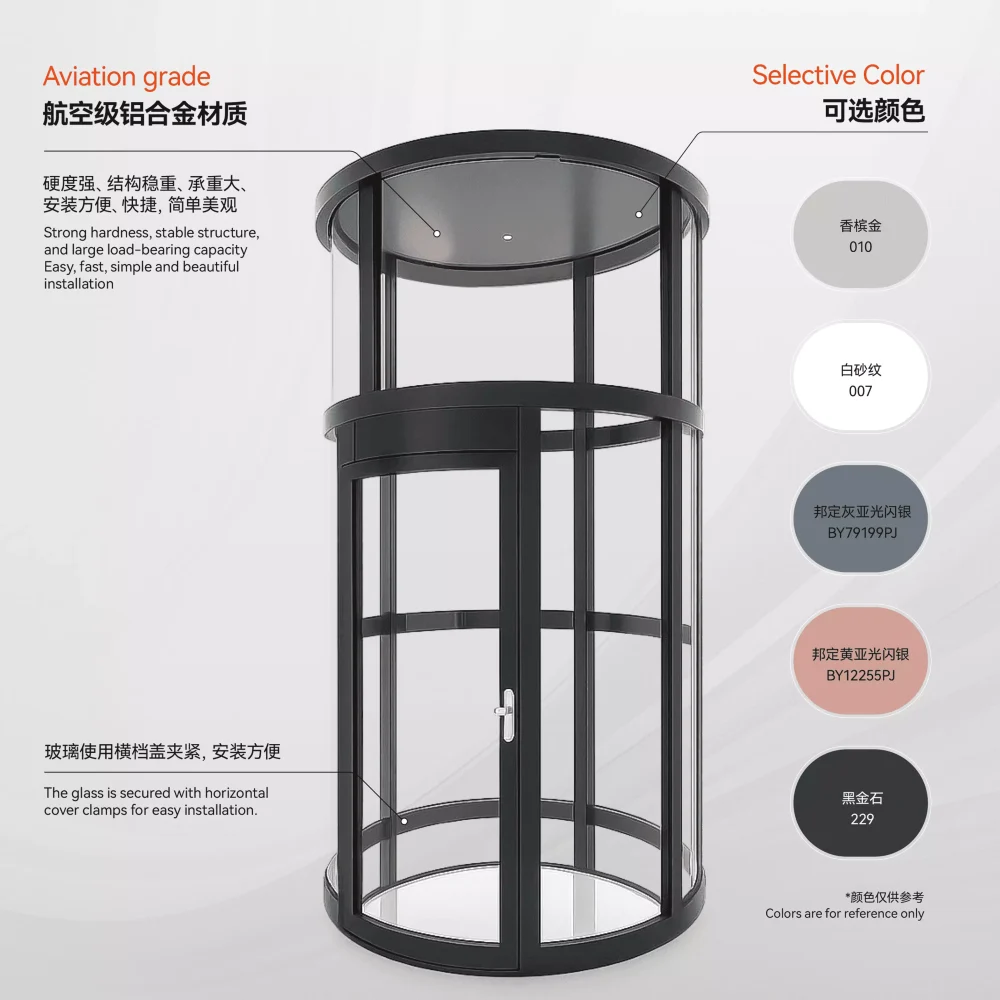

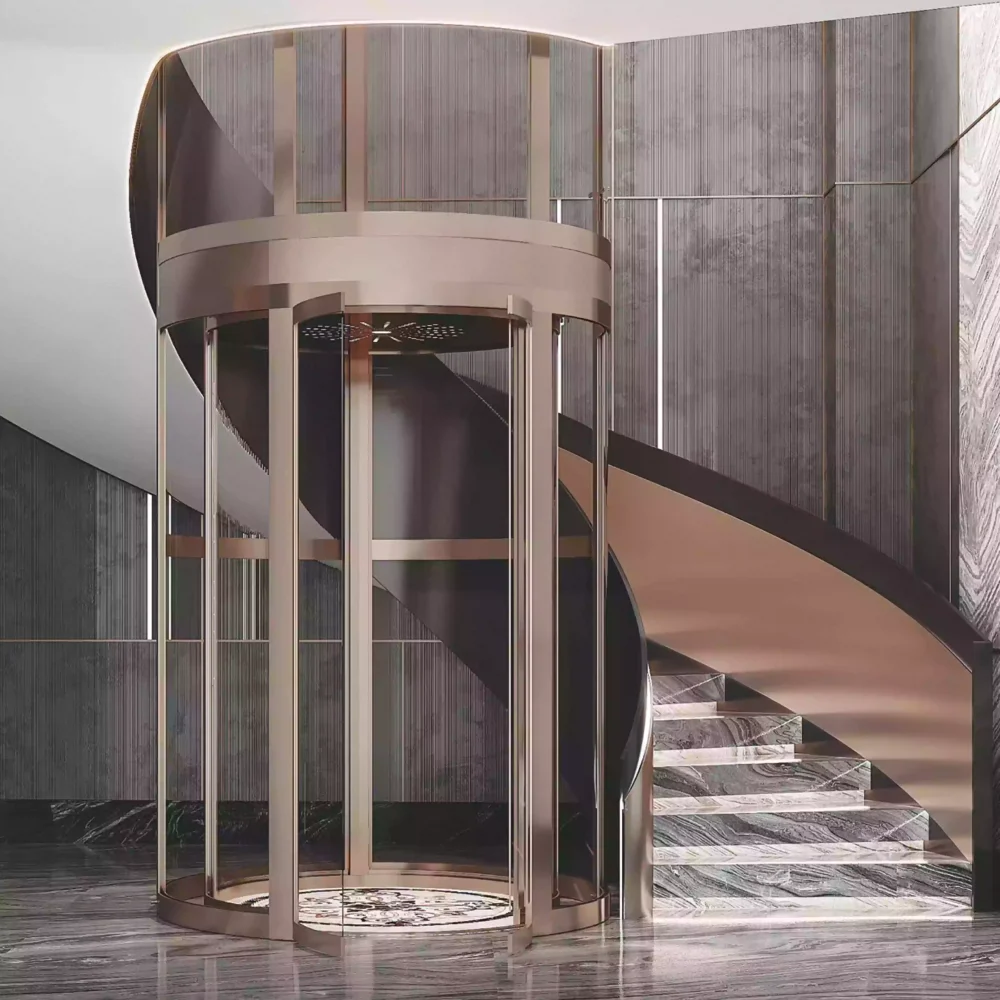

This stylish, space-saving vertical transportation solution features a 360° full glass tube design, offering unobstructed views and a sleek, modern aesthetic. Built with aerospace-grade aluminum frame and 304 stainless steel finishes, it is lightweight, rust-resistant, and ideal for villas, showrooms, and boutique buildings.
The glass tube elevator is powered by a gearless traction rail system, delivering a smooth, whisper-quiet ride while reducing energy consumption. Integrated safety features include emergency leveling, real-time monitoring, and compliance with CE/EN81 international installation standards.
- Description
- Core Technology
- BDFUJl Elevator Function
- Product Brochure
- After-sales and support
- FAQ
- Comparison with Other Brands
A sleek, space-efficient glass tube elevator, engineered with a 360° panoramic design to provide unobstructed views and a contemporary look. Crafted from aerospace-grade aluminum and 304 stainless steel panels, it is lightweight, corrosion-resistant, and perfect for villas, showrooms, and boutique commercial spaces.
Powered by a gearless traction MRL system, it delivers smooth, whisper-quiet rides while lowering energy consumption. Equipped with safety essentials such as emergency leveling, real-time monitoring, and CE/EN81 compliance, making it ready for global installation and long-term reliable use.

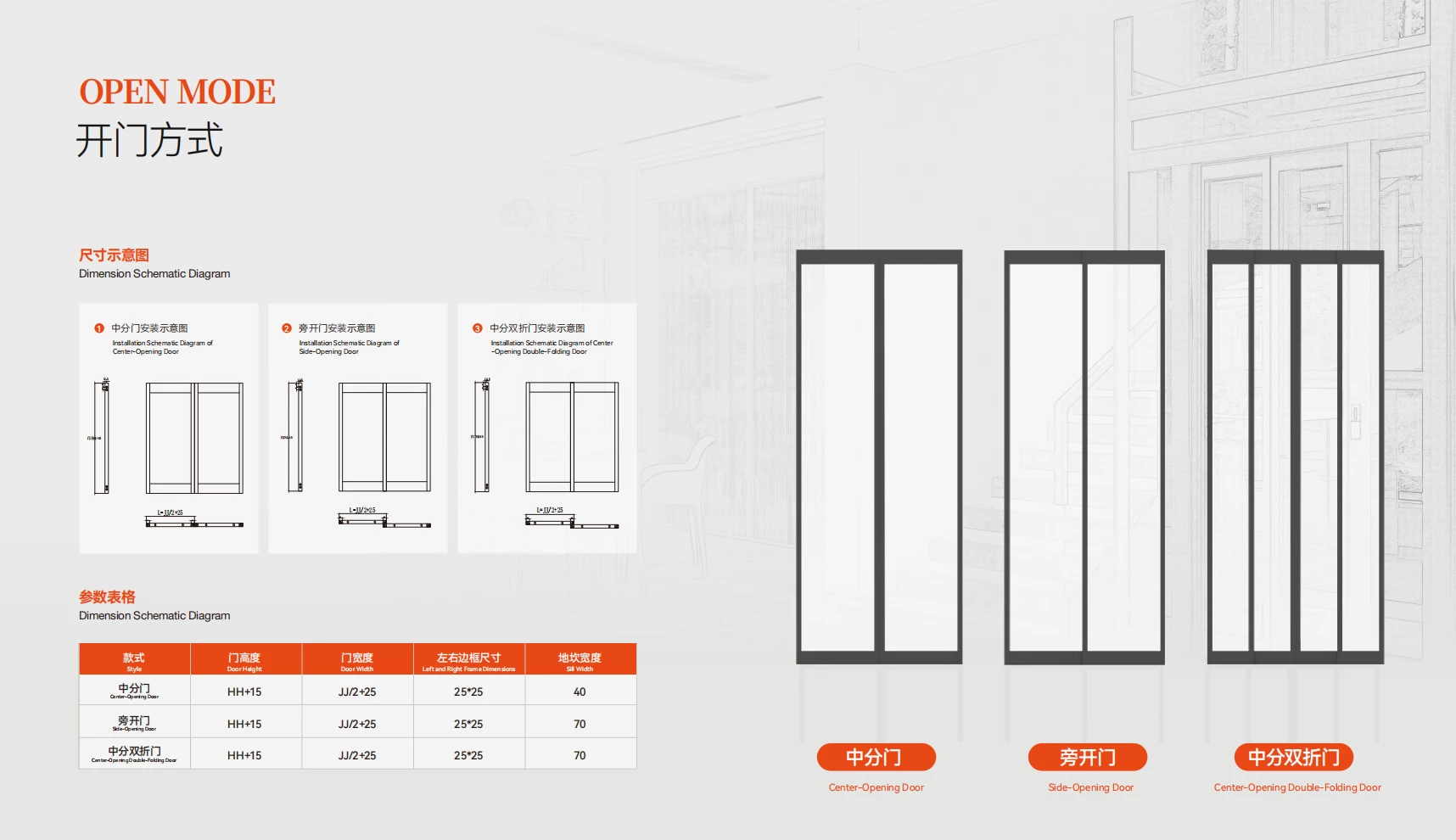

Open Modes
BDFUJI Glass Tube Elevator offers three door configurations to suit different shaft layouts and design requirements:
-
Center-Opening Door – The standard symmetrical solution for a clean look and comfortable passenger entry.
-
Side-Opening Door – Ideal for offset shafts or narrow spaces, offering flexible installation.
-
Center-Opening Double-Folding Door – Maximizes clear opening width without increasing shaft size, perfect for space-constrained projects.
All three open modes are perfectly compatible with the Glass Tube Elevator’s aluminum shaft structure, ensuring smooth operation and a refined appearance.
BDFUJI Elevator
—Core Technology
BDFUJI Elevator provides customers with high-performance, high-safety and high-compatibility vertical transportation solutions with its powerful drive system, intelligent control technology and flexible space adaptation capabilities.
Intelligent Control and Security Technology
It supports multi-brand control cabinets (YASKAWA, STEP, Monarch), and integrates intelligent door machines, infrared light curtains, ultraviolet sterilization, anti-robbery doors and energy feedback technology to create dual protection of intelligence and safety.
Flexible Space Solutions
Provides two installation solutions: small machine room and no machine room, to maximize the adaptability to building space requirements.
Advanced Drive System
BDFUJI elevators use a new generation of permanent magnet synchronous traction machines, Italian high-performance traction motors, and steel belt mainframes of the same level as OTIS, ensuring that the elevators are powerful, energy-efficient, and have a longer lifespan.
BDFUJI Elevator
—Core Features
BDFUJI elevators provide many humanized functions, effectively reduce energy consumption, ensure passenger safety, and also provide convenient barrier-free functions to meet the needs of all types of passengers, bringing users a smart, safe, and environmentally friendly quality experience.
Energy Feedback System
BDFUJI elevators use advanced energy feedback technology to feed back excess energy during operation to the power grid, effectively reducing energy waste and lowering the cost of elevator operation for you.
Microcomputer Intelligent Group Control
Efficiently allocate elevator resources according to demand, reduce waiting time and improve transport efficiency.
Infrared Light Curtain Door Protection
The infrared curtain detects obstacles in real time and automatically prevents the door from closing when blocked.
Emergency Stop & Power Failure Self-Rescue
In case of emergency, the elevator stops level and opens the door for safe exit, ensuring continued operation.
Accessibility
Equipped with Braille buttons, voice system, and low-level panels for easier use by the elderly, children, and disabled.
Elevator Standard and Optional Functions
| Standard Functions | |
|---|---|
| Travel Functions | |
| VVVF Drive | The elevator can smoothly start and stop, ensuring comfort during operation. |
| VVVF Operator | The motor operates smoothly, responds sensitively, and ensures quiet operation. |
| Independent Running | When the elevator is empty, it will automatically run to the nearest landing to save energy. |
| Automatic Door Operation | Door open/close time is automatically adjusted according to the traffic demand. |
| Reopen with Hall Call | When the elevator door shuts prematurely, it can automatically reopen with the hall call. |
| Express Door Closing | When the elevator stops, the doors close immediately to save time. |
| Car Arrival Gong | A sound is produced when the elevator arrives at the landing, notifying passengers. |
| Direct Parking | The elevator can park directly without the need for leveling, increasing travel efficiency. |
| Safety Functions | |
| Photocell Protection | The photocell detects any obstruction in the door's path and prevents it from closing. |
| Overload Warning Stop | The elevator will stop if it is overloaded, ensuring passenger safety. |
| Inspection Operation | The elevator can operate in inspection mode for maintenance or emergency purposes. |
| Fault Self-Diagnosis | The system performs automatic checks to detect and address issues in real time. |
| Upward/Downward Run and Final Limit Protection | Prevents the elevator from exceeding safe operating limits in either direction. |
| Optional Functions | |
|---|---|
| Uninterrupted Power Supply (UPS) | In case of a power failure, the elevator continues to operate using the backup battery power. |
| Anti-Nuisance | Prevents nuisance calls by intelligently detecting when a call should be canceled. |
| Voice Announcement | The elevator can announce the current floor and other relevant information to passengers. |
| Car Monitoring | The car can be monitored for condition and functionality, ensuring safety during operation. |
BDFUJI Elevator — Product Brochure

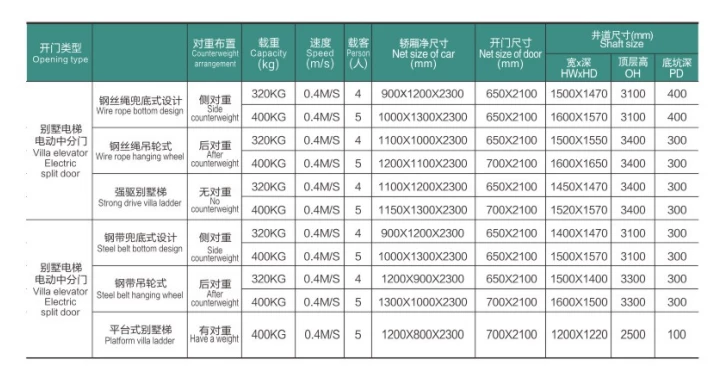

Get our product brochure to learn more about elevator decoration configuration, civil engineering parameter requirements and elevator specifications and dimensions.
BDFUJI Elevator — Provide You With Various Guarantees
2 Year Warranty
- ✔ Includes all 2-year warranty benefits
- ✔ Loss And Damage Protection
- ✔ Installation Technical Instructions
- ✔ Online Video 1V1 Guidance From Engineers
- ✔ Regular On-site Inspections By Technical Personnel
Important Elevator Parts 5-Year Warranty
- ✔ Comprehensive coverage including 2-year warranty benefits
- ✔ Theft and Damage Protection
- ✔ Priority Assistance and Support
Still got questions?
Our elevators are designed with state-of-the-art technology to provide efficient, smooth, and safe transportation. We use advanced components that ensure longevity and minimal maintenance.
A Comparison Between BDFUJI and Other Elevator Brands
| Feature | BDFUJI | Mits* | Hit* | Kon* | Oti* |
|---|---|---|---|---|---|
| Permanent Magnet Gearless Traction Machine | Yes (40% energy saving) | Yes | Yes | Yes | Yes |
| Italian Montanari Traction Machine Option | Available | — | — | — | — |
| Advanced Door Operator System | Energy-saving, Japan tech | Yes | Yes | Yes | Yes |
| Control System (YASKAWA/STEP/MONARCH) | Multiple Options | Single Vendor | Single Vendor | Single Vendor | Single Vendor |
| Infrared Light Curtain | Yes (Upgraded) | Yes | Yes | Yes | Yes |
| Energy Feedback System | Yes | Limited | Yes | Limited | Yes |
| UV Sterilization System | Yes | No | No | No | Optional |
| Anti-theft Door Device | Yes | No | Optional | No | No |
| Machine Roomless Option | Yes | Yes | Yes | Yes | Yes |
| International Certification (CE, EAC, etc.) | Full | Full | Full | Full | Full |
