Machine Roomless (MRL)Passenger Elevator
This machine-roomless passenger elevator solution features core components from leading international brands, paired with advanced Fuji control technology from Japan. It saves space while ensuring smooth and reliable operation. A wide range of cabin finishes and customization options are available to match modern architectural aesthetics, making it an ideal choice for buildings with limited space.
- Description
- Core Technology
- BDFUJl Elevator Function
- Product Brochure
- After-sales and support
- FAQ
- Comparison with Other Brands
BDFUJI machine-roomless passenger elevator requires no separate machine room, seamlessly integrating with your building’s structure while optimizing shaft dimensions and increasing usable floor space. It is an excellent choice for residential, commercial, and public buildings where space is limited.
MRL Passenger Elevator Technical Specifications
BDFUJI MRL passenger elevators combine strong performance with outstanding flexibility — supporting lift heights up to 110 m, speeds up to 2.5 m/s, and capacities up to 2000 kg (27 persons). This flexibility extends to car sizes, door widths, and shaft dimensions, allowing perfect adaptation to residential, commercial, and mixed-use projects. Whether for narrow shafts, high-traffic buildings, or premium applications, BDFUJI’s MRL solutions deliver smooth, energy-efficient rides and optimized space utilization without the need for a machine room.
| Specification | Details |
|---|---|
| Capacity | Up to 2,600 kg |
| Travel Height | Up to 150 m |
| Stops | Up to 50 stops, max. 80 openings |
| Speed | Up to 3.0 m/s |
| Layout Options | Side Counterweight, Rear Counterweight, Dual Counterweight |
| Drive System | Eco-friendly regenerative drive with frequency control |
| Group Control | Up to 8 cars |
| Entrances | Single or double entrance options |
Machine Roomless Passenger Lift Size
| Person | Rated capacity (kg) | Rated speed (m/s) | Net size of car (mm) (C.W×C.D) | Net size of door (mm) Center opening (D.W×D.H) | Shaft size (mm) (H.W×H.D) | OH (mm) | PD (mm) | Maximum lift height (m) |
|---|---|---|---|---|---|---|---|---|
| 5 | 400 | 1.0 / 1.5 / 1.75 / 2.0 / 2.5 | 1100 × 1000 | 700 × 2100 | 1750 × 1650 | 4100 / 4400 / 4600 | 1350 / 1400 / 1500 / 1700 | 35 / 60 / 80 / 100 / 110 |
| 8 | 630 | 1.0 / 1.5 / 1.75 / 2.0 / 2.5 | 1350 × 1200 | 800 × 2100 | 2000 × 1800 | 4100 / 4400 / 4600 | 1350 / 1400 / 1500 / 1700 | 35 / 60 / 80 / 100 / 110 |
| 10 | 800 | 1.0 / 1.5 / 1.75 / 2.0 / 2.5 | 1500 × 1300 | 900 × 2100 | 2200 × 1900 | 4100 / 4400 / 4600 | 1350 / 1400 / 1500 / 1700 | 35 / 60 / 80 / 100 / 110 |
| 13 | 1000 | 1.0 / 1.5 / 1.75 / 2.0 / 2.5 | 1600 × 1500 | 900 × 2100 | 2300 × 2000 | 4100 / 4400 / 4600 | 1350 / 1400 / 1500 / 1700 | 35 / 60 / 80 / 100 / 110 |
| 16 | 1250 | 1.0 / 1.5 / 1.75 / 2.0 / 2.5 | 1800 × 1600 | 1000 × 2100 | 2800 × 2100 | 4100 / 4400 / 4600 | 1350 / 1400 / 1500 / 1700 | 35 / 60 / 80 / 100 / 110 |
| 18 | 1350 | 1.0 / 1.5 / 1.75 / 2.0 / 2.5 | 1800 × 1700 | 1000 × 2100 | 2800 × 2200 | 4100 / 4400 / 4600 | 1350 / 1400 / 1500 / 1700 | 35 / 60 / 80 / 100 / 110 |
| 21 | 1600 | 1.0 / 1.5 / 1.75 / 2.0 / 2.5 | 1900 × 1800 | 1100 × 2100 | 2900 × 2300 | 4100 / 4400 / 4600 | 1350 / 1400 / 1500 / 1700 | 35 / 60 / 80 / 100 / 110 |
| 27 | 2000 | 1.0 / 1.5 / 1.75 / 2.0 / 2.5 | 2000 × 2100 | 1200 × 2100 | 3000 × 2600 | 4100 / 4400 / 4600 | 1350 / 1400 / 1500 / 1700 | 35 / 60 / 80 / 100 / 110 |
Note:
According to the different needs of customers corresponding to different shaft sizes, please contact the design department of our company.
Features
Compact MRL Design
The BDFUJI Machine Roomless Passenger Elevator adopts an MRL solution, integrating the traction machine directly into the hoistway. This enables optimal layout planning and maximizes rentable space.
Smooth and Energy-Efficient Ride
Equipped with a gearless, permanent-magnet traction machine, the elevator delivers quiet, stable operation while reducing energy consumption. The lubrication-free design minimizes maintenance requirements and ensures long-term reliability.
Advanced Control System
Featuring Japanese Fuji control technology, the system guarantees precise leveling, consistent acceleration, and safe, reliable operation. Digital commissioning tools allow efficient setup and ongoing performance monitoring.
Customizable Cabin and Door Options
A wide selection of cabin finishes, handrails, lighting, and flooring is available to match modern architectural aesthetics. Door configurations can be set with millimeter precision, with widths ranging from 800 mm to 1800 mm and heights up to 3000 mm, offered in center-opening or side-opening types.
Environmentally Friendly Solution
Our MRL elevator uses regenerative drive technology to feed energy back to the grid, reducing travel energy consumption by up to 30% compared to conventional systems.
Infinite Design Possibilities

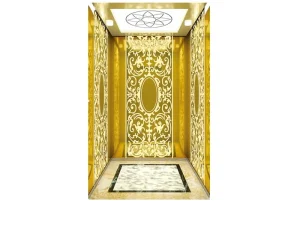

Create the look and atmosphere you truly desire. BDFUJI elevators use a sophisticated combination of colors, materials, lighting, mirrors, handrails, and fixtures to craft interiors that perfectly complement your building’s style. We offer a wide selection of cabin finishes to choose from, and we can also custom-design a unique elevator cabin tailored to your exact requirements.
Not sure which MRL elevator configuration fits your project? Let our experts guide you.
BDFUJI MRL passenger elevators deliver smooth rides, energy efficiency, and space-saving design — all customizable to your shaft size, speed, and capacity requirements. From residential buildings to commercial complexes, we make your vertical transportation safer, smarter, and more elegant.
Take the next step toward an optimized building experience.
Contact us to get tailored recommendations and start planning your ideal MRL elevator today.
BDFUJI Elevator
—Core Technology
BDFUJI Elevator provides customers with high-performance, high-safety and high-compatibility vertical transportation solutions with its powerful drive system, intelligent control technology and flexible space adaptation capabilities.
Intelligent Control and Security Technology
It supports multi-brand control cabinets (YASKAWA, STEP, Monarch), and integrates intelligent door machines, infrared light curtains, ultraviolet sterilization, anti-robbery doors and energy feedback technology to create dual protection of intelligence and safety.
Flexible Space Solutions
Provides two installation solutions: small machine room and no machine room, to maximize the adaptability to building space requirements.
Advanced Drive System
BDFUJI elevators use a new generation of permanent magnet synchronous traction machines, Italian high-performance traction motors, and steel belt mainframes of the same level as OTIS, ensuring that the elevators are powerful, energy-efficient, and have a longer lifespan.
BDFUJI Elevator
—Core Features
BDFUJI elevators provide many humanized functions, effectively reduce energy consumption, ensure passenger safety, and also provide convenient barrier-free functions to meet the needs of all types of passengers, bringing users a smart, safe, and environmentally friendly quality experience.
Energy Feedback System
BDFUJI elevators use advanced energy feedback technology to feed back excess energy during operation to the power grid, effectively reducing energy waste and lowering the cost of elevator operation for you.
Microcomputer Intelligent Group Control
Efficiently allocate elevator resources according to demand, reduce waiting time and improve transport efficiency.
Infrared Light Curtain Door Protection
The infrared curtain detects obstacles in real time and automatically prevents the door from closing when blocked.
Emergency Stop & Power Failure Self-Rescue
In case of emergency, the elevator stops level and opens the door for safe exit, ensuring continued operation.
Accessibility
Equipped with Braille buttons, voice system, and low-level panels for easier use by the elderly, children, and disabled.
Elevator Standard and Optional Functions
| Standard Functions | |
|---|---|
| Travel Functions | |
| VVVF Drive | The elevator can smoothly start and stop, ensuring comfort during operation. |
| VVVF Operator | The motor operates smoothly, responds sensitively, and ensures quiet operation. |
| Independent Running | When the elevator is empty, it will automatically run to the nearest landing to save energy. |
| Automatic Door Operation | Door open/close time is automatically adjusted according to the traffic demand. |
| Reopen with Hall Call | When the elevator door shuts prematurely, it can automatically reopen with the hall call. |
| Express Door Closing | When the elevator stops, the doors close immediately to save time. |
| Car Arrival Gong | A sound is produced when the elevator arrives at the landing, notifying passengers. |
| Direct Parking | The elevator can park directly without the need for leveling, increasing travel efficiency. |
| Safety Functions | |
| Photocell Protection | The photocell detects any obstruction in the door's path and prevents it from closing. |
| Overload Warning Stop | The elevator will stop if it is overloaded, ensuring passenger safety. |
| Inspection Operation | The elevator can operate in inspection mode for maintenance or emergency purposes. |
| Fault Self-Diagnosis | The system performs automatic checks to detect and address issues in real time. |
| Upward/Downward Run and Final Limit Protection | Prevents the elevator from exceeding safe operating limits in either direction. |
| Optional Functions | |
|---|---|
| Uninterrupted Power Supply (UPS) | In case of a power failure, the elevator continues to operate using the backup battery power. |
| Anti-Nuisance | Prevents nuisance calls by intelligently detecting when a call should be canceled. |
| Voice Announcement | The elevator can announce the current floor and other relevant information to passengers. |
| Car Monitoring | The car can be monitored for condition and functionality, ensuring safety during operation. |
BDFUJI Elevator — Product Brochure
Get our product brochure to learn more about elevator decoration configuration, civil engineering parameter requirements and elevator specifications and dimensions.
BDFUJI Elevator — Provide You With Various Guarantees
2 Year Warranty
- ✔ Includes all 2-year warranty benefits
- ✔ Loss And Damage Protection
- ✔ Installation Technical Instructions
- ✔ Online Video 1V1 Guidance From Engineers
- ✔ Regular On-site Inspections By Technical Personnel
Important Elevator Parts 5-Year Warranty
- ✔ Comprehensive coverage including 2-year warranty benefits
- ✔ Theft and Damage Protection
- ✔ Priority Assistance and Support
Still got questions?
Our elevators are designed with state-of-the-art technology to provide efficient, smooth, and safe transportation. We use advanced components that ensure longevity and minimal maintenance.
A Comparison Between BDFUJI and Other Elevator Brands
| Feature | BDFUJI | Mits* | Hit* | Kon* | Oti* |
|---|---|---|---|---|---|
| Permanent Magnet Gearless Traction Machine | Yes (40% energy saving) | Yes | Yes | Yes | Yes |
| Italian Montanari Traction Machine Option | Available | — | — | — | — |
| Advanced Door Operator System | Energy-saving, Japan tech | Yes | Yes | Yes | Yes |
| Control System (YASKAWA/STEP/MONARCH) | Multiple Options | Single Vendor | Single Vendor | Single Vendor | Single Vendor |
| Infrared Light Curtain | Yes (Upgraded) | Yes | Yes | Yes | Yes |
| Energy Feedback System | Yes | Limited | Yes | Limited | Yes |
| UV Sterilization System | Yes | No | No | No | Optional |
| Anti-theft Door Device | Yes | No | Optional | No | No |
| Machine Roomless Option | Yes | Yes | Yes | Yes | Yes |
| International Certification (CE, EAC, etc.) | Full | Full | Full | Full | Full |
Are You Still Not Sure If It’s The Right Fit?
Our elevator consultants are ready to talk to you
Whether you are curious, skeptical or want to know the price, we are here to help.
