35° Outdoor Escalator Customizable
BDFUJI outdoor escalator is specially designed for outdoor environment, adopting galvanizing technology and waterproof and corrosion-resistant parts, so that it can cope with various natural environments.
Main Configuration of BDFUJI Outdoor Escalator
| Configuration | Details |
|---|---|
| Lifting Height | 4.0m – 20m |
| Incline Angle | 30°, 35° |
| Step Width | 1000mm, 800mm, 600mm |
| Horizontal Steps | 2-3 steps |
| Step Material | Aluminum alloy |
| Additional Features | Waterproof steps, step chains, step main rollers, step rails, oiling device, handrails |

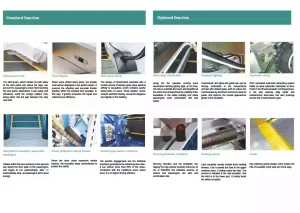

BDFUJI Outdoor Escalator Function Introduction
| Standard Function | Optional Function |
|---|---|
| Skirt Panel Brush | Skirt Panel Illumination |
| The skirt brush prevents passengers’ shoes from touching the skirt panel and avoids foreign matters entering the gap between the step and skirt. | Streamlined lighting along the cascade running track enhances the escalator’s visibility and comfort for passengers. |
| Fault Display | Running Direction Indication |
| Displays the error code when defects occur, ensuring accurate trouble location for efficient maintenance. | Indicates the forbidden line, ensuring passengers are safe and the ride is comfortable. |
| Intermittent Operation (Auto Start/Stop) | Handrail Lighting |
| The system automatically runs and stops based on passenger detection, saving energy. | Custom LED lights embedded in the handrail improve visibility and aesthetic quality. |
| Driver Protection Strand Breaks | Heating Device |
| The escalator stops automatically when the drive chain is excessively tense or fractures, ensuring safety. | Heats the escalator in three stages, ensuring the entire escalator is warmed, particularly during cold weather. |
| Vertical Type Traction Machine | Automatic Oiling |
| Guarantees low noise and high efficiency in driving, reducing more than 60% of noise compared to traditional systems. | VF-controlled automatic lubrication system reduces maintenance work and extends the service life of transmission gears. |
| Comb | |
| Yellow plastic comb enhances escalator safety and smoothness. |
Types of Buildings Suitable for Outdoor Escalators
Our BDFUJI outdoor escalators are specially designed for various buildings, particularly those requiring efficient crowd management. Below are the main types of buildings where our escalators are ideal:
- Large Shopping Centers and Commercial Areas：In high-traffic shopping malls, commercial plazas, and similar places, the BDFUJI outdoor escalator ensures smooth traffic flow during peak times with its heavy load design. It is equipped with anti-slip, anti-corrosion, and anti-rust features, adapting to all weather conditions and ensuring year-round operation.
- Transportation Hubs (Airports, Stations, Subways)：In transportation hubs such as airports, train stations, and subway stations, BDFUJI outdoor escalators quickly transport large numbers of passengers, reducing wait times and ensuring efficient traffic flow. They are made from corrosion-resistant materials to withstand damage from rain, wind, and sand.
- Tourist Attractions and Resorts：Our outdoor escalators are optimized for features such as scenic area entrances and hilltop attractions. They help reduce energy consumption and operational costs without compromising performance while minimizing visitor fatigue from long walks, enhancing the overall tourist experience.
- Public Parks and Outdoor Event Venues：For public spaces like parks and open-air squares, BDFUJI outdoor escalators offer UV-resistant and anti-slip designs to ensure long-term stable operation. They also enhance visitor flow, preventing congestion and ensuring crowd safety.
- Sports Venues and Exhibition Centers：For large event venues, such as sports stadiums and exhibition centers, our outdoor escalators are designed with high load capacity to efficiently transport large crowds during major events. Equipped with advanced control systems, they automatically adjust running speed and energy consumption based on real-time foot traffic, maximizing resource utilization.
Why Choose BDFUJI Outdoor Escalators?
- Aesthetic and Safety：Our BDFUJI outdoor escalators not only meet international safety standards, capable of handling large crowds, but they are also designed with passenger safety and architectural aesthetics in mind. The escalators feature anti-slip and anti-corrosion designs that withstand extreme weather conditions such as rain, snow, wind, and high temperatures, ensuring long-term stable operation and reducing maintenance needs. The streamlined design, along with efficient lighting systems, enhances the building’s aesthetic while improving the escalator’s visibility, ensuring passengers can clearly identify it under various lighting conditions for added safety.
- Smart and Energy-Efficient：The BDFUJI escalator system is equipped with advanced automation technology, allowing it to automatically adjust running speed based on real-time passenger flow, maximizing energy-saving effects and reducing unnecessary energy consumption.
- Simple and Easy to Install：Our BDFUJI outdoor escalators are pre-assembled before leaving the factory, greatly reducing the complexity of on-site installation. Installation workers can complete the process faster and more efficiently, saving both time and costs. We also provide detailed installation manuals and technical support to ensure a smooth installation process.
