The elevator pit plays a crucial role in building design. For the elevator system, proper planning of the elevator pit is equally critical, as it directly affects both the safety and service life of the elevator.
If the elevator pit is not designed correctly, it can lead to unstable elevator operation, and may even result in high maintenance costs and equipment failure. In this article, we will explain what an elevator pit is, why it is necessary, and how to design it properly to ensure the smooth operation of the elevator system.

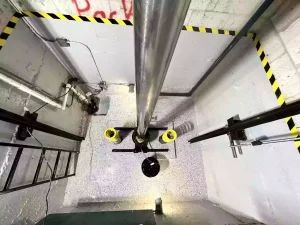

What is an Elevator Pit?
The elevator pit is a space excavated to a certain depth at the bottom of the elevator shaft. It is designed to house the elevator’s buffer device and provide space for the elevator car to travel downward. The size and design of the pit are critical for the elevator’s stability and safety. Improper pit design can cause instability during downward movement, generate excessive noise and vibration, and negatively impact both the passenger experience and the durability of the equipment.
Additionally, different elevator systems have different requirements for the pit. Below are the specifications for the pits of two common types of elevators:

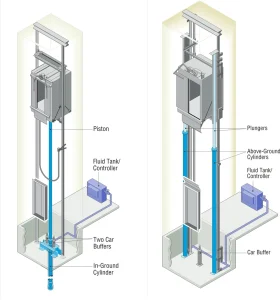

Hydraulic Elevator Pit Depth
Hydraulic elevators typically require a deeper pit to accommodate the hydraulic system and buffer devices. The pit depth for hydraulic elevators is usually between 1.5 meters and 2.5 meters. The exact depth depends on factors such as the load, speed, and number of floors in the building. In high-rise buildings, the pit depth may need to be greater.

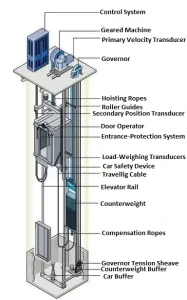

Traction Elevator Pit Depth
The pit for traction elevators is relatively shallow, making them suitable for medium- and high-rise buildings. The pit depth for traction elevators typically ranges from 1.0 meters to 1.5 meters. In low-rise buildings, the pit may be even shallower, typically not exceeding 1 meter.
Factors Affecting Pit Depth
Hydraulic Elevators:
A deeper pit is required due to the space needed for the hydraulic system and buffer devices. The increased pit depth helps ensure stable elevator operation.
Traction Elevators:
The pit is relatively shallow because traction elevators are powered by motors and traction systems, which require less space for installation and shock absorption.
Specific Examples:
-
Low-rise buildings (e.g., residential buildings): The pit depth for hydraulic elevators is usually around 1.5 meters, while for traction elevators, it is about 1.0 meters.
-
Medium- and high-rise buildings (e.g., office buildings, commercial buildings): The pit for hydraulic elevators generally ranges from 2.0 meters to 2.5 meters, while the pit for traction elevators is typically around 1.5 meters.
If the pit is too shallow or does not meet the necessary requirements, the elevator may fail to stop smoothly and could even damage the elevator car, resulting in increased maintenance costs. Therefore, the pit design must ensure that the elevator can stop safely and smoothly when reaching the lowest point.

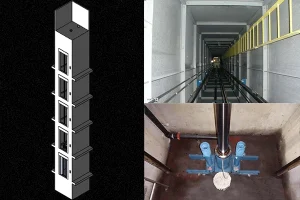

The Difference Between the Elevator Pit and the Elevator Shaft
Although both the elevator shaft and the elevator pit are key components of the elevator system, their design functions differ.
Functional Differences Between the Elevator Pit and the Elevator Shaft
-
Shaft:
The elevator shaft is the vertical space in which the elevator system operates. It houses the elevator car, counterweight, guide rails, transmission devices, and other essential components. The shaft serves as the passage for the elevator car to move up and down, ensuring smooth operation and providing space for elevator installation and maintenance. The shaft design primarily focuses on elevator vertical operation, system stability, and meeting building structural requirements. -
Pit:
The elevator pit is located at the bottom of the shaft. Its main purpose is to house the elevator’s buffer device and provide sufficient downward space for the elevator car. The depth and design of the pit are crucial for the elevator’s smooth operation and safety. The pit design directly impacts the elevator’s service life, maintenance, and emergency performance.
Differences in the Design Depth and Width of the Elevator Pit and Shaft
-
Shaft Width and Depth:
The design of the elevator shaft width and depth usually depends on the type of elevator and load requirements. The width of the shaft is typically between 2.5 meters and 4 meters, and the depth must accommodate components such as the elevator car and counterweight. The shaft depth for both hydraulic and traction elevators is relatively similar, but hydraulic elevators may require a slightly deeper shaft due to the additional equipment. -
Pit Depth and Width:
The pit for hydraulic elevators generally has a greater depth, usually ranging from 1.5 meters to 2.5 meters, to accommodate the hydraulic system and buffer devices. In contrast, traction elevators do not require such a deep pit, with the depth typically between 1.0 meters and 1.5 meters. The pit width generally matches the shaft width, but must also account for the installation of buffer devices to ensure adequate space.
Differences in Functional Requirements Between the Elevator Pit and Shaft
-
Impact of Shaft Design:
The width, depth, and space configuration of the shaft directly affect the operational stability of the elevator car and the overall efficiency of the elevator system. If the shaft design is too narrow or shallow, it can hinder the smooth installation of the counterweight system and guide rails, which in turn impacts the speed and load capacity of the elevator. The shaft design must also account for maintenance and service space to ensure easy long-term use. -
Impact of Pit Design:
The depth and width of the pit directly influence the safety and stability of the elevator. For hydraulic elevators, a deeper pit is needed to prevent direct contact between the car and the bottom of the shaft, reducing the impact force on the system. A shallow pit would compromise the buffer system’s effectiveness, increasing the risk of failure, while an excessively deep pit would complicate construction and waste space.
Why Does the Elevator Need a Pit?
The primary function of the elevator pit is to support the elevator’s buffer device, ensure the elevator stops smoothly, and reduce mechanical wear. Below are the reasons why the pit is necessary:

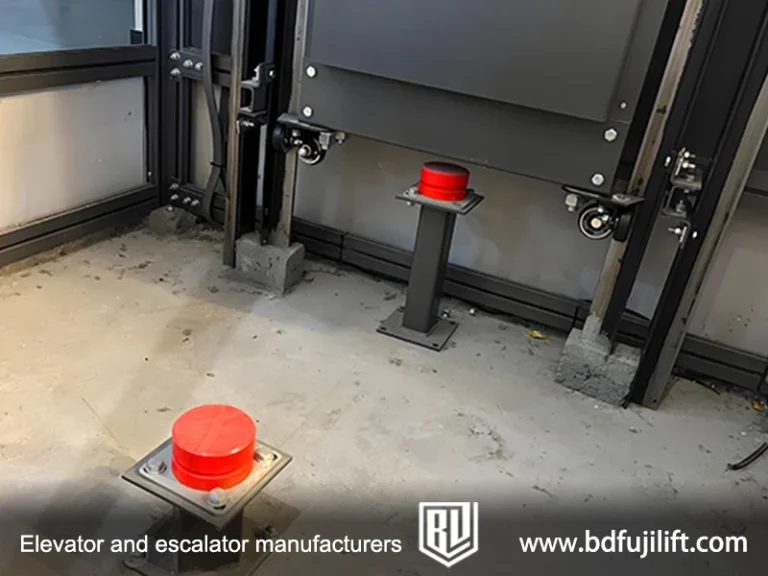

1. Buffering
The main function of the elevator pit is to house the buffer devices. As the elevator descends, it generates impact force due to inertia. If this force is not absorbed, it could cause significant wear on the elevator system. Buffer devices, such as spring or hydraulic buffers, are installed in the pit to absorb this impact, preventing the car from colliding with the bottom of the shaft and ensuring a smooth and safe stop.
2. Preventing Excessive Descent of the Elevator Car
The elevator system is equipped with buffer devices at the bottom to prevent the car from falling too far due to inertia or external forces. Without adequate downward space or buffering, the car may collide with the bottom of the shaft, causing damage to the system and posing a safety risk to passengers.
3. Supporting Equipment
The pit also provides space for other important elevator components, especially in hydraulic elevators, where the hydraulic system requires ample space. These components are often precisely connected using laser welders to ensure smooth operation of the elevator.Traction elevators, on the other hand, need space for equipment like motors. The elevator system must have enough pit space to ensure proper functioning and meet operational space requirements.
How Big Does the Elevator Pit Need to Be?
The size of the elevator pit varies depending on the type of elevator. An insufficiently sized pit can prevent the elevator system from operating properly or even prevent installation altogether.
| Elevator Type | Applicable Building | Pit Depth Requirements | Installation Cost (Average) |
|---|---|---|---|
| Hydraulic Elevator | Low-rise buildings (up to 6 floors) | Depth: 1.5m – 2m | $4,000 – $8,000 |
| Traction Elevator | Mid- to high-rise buildings | Depth: 1.2m – 1.5m | $15,000 – $30,000 |
| Machine Roomless Elevator (MRL) | High-rise buildings | Depth: 1m – 1.2m | $35,000 – $80,000+ |
If the pit is too small, the elevator may not operate smoothly, and safety could be compromised. An undersized pit could also affect support and buffering, leading to higher failure rates and maintenance costs.

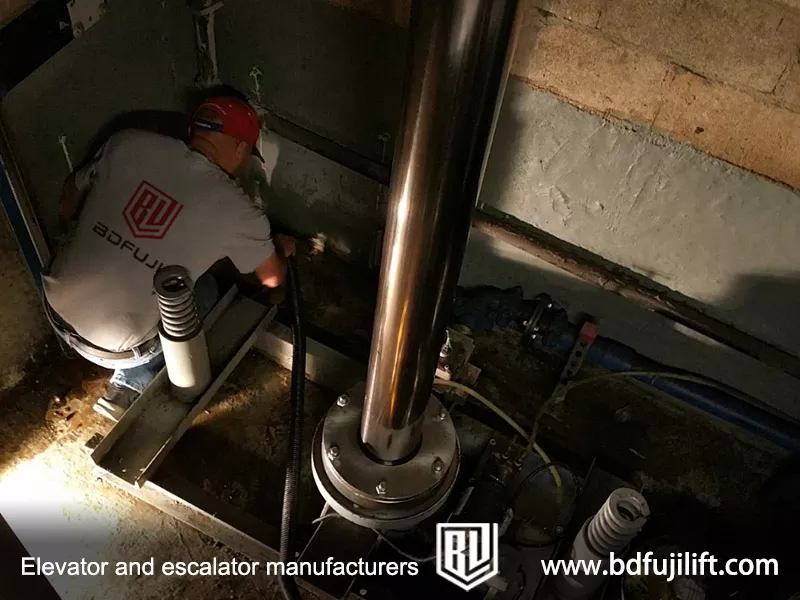

What Work Is Required to Build an Elevator Pit?
Building an elevator pit may seem straightforward, but many details are often overlooked, which can lead to issues with the elevator system and affect the building’s overall functionality. Therefore, certain tasks should not be neglected during the construction process.
Waterproofing
The elevator pit is located underground and is susceptible to groundwater. Without proper waterproofing, moisture could affect the operation of the equipment. Using waterproof paint or membranes on the bottom and side walls of the pit effectively prevents water penetration and keeps the pit dry.
Drainage System
Water accumulation in the pit can harm the equipment and cause more serious malfunctions. Installing drainage pipes ensures that water flows away from the pit, preventing any impact on elevator performance.
Pit Support Structure
If the pit is deep or located in poor soil conditions, settlement problems may arise, affecting the installation and operation of the elevator. Reinforced concrete or other support materials can stabilize the pit and ensure the elevator’s long-term reliability.
Installation Space for Buffer Devices
The pit needs to provide adequate space for the buffer devices, which absorb impact forces when the elevator stops. Proper space design ensures that these devices can be installed and function correctly, maintaining the elevator’s safety.
Check Pit Size and Design Match
Once construction is completed, the pit size must be checked to ensure it matches the design specifications. An improperly sized pit could prevent the installation of equipment or hinder the elevator’s normal operation.
The elevator pit is a crucial component of the elevator system. Proper pit design ensures the elevator operates smoothly and extends its service life. The design should consider the elevator type, building requirements, and installation environment to avoid safety risks and high maintenance costs. If you’re planning an elevator installation, it’s essential to collaborate with a professional designer to ensure the pit meets all specifications and guarantees the safety and efficiency of the elevator system.
Frequently Asked Questions (FAQs)
Q1: How big does the elevator pit need to be when installing an elevator?
A: The size of the elevator pit depends on the type of elevator. Hydraulic elevators typically require a larger pit, while machine room-less elevators need a smaller pit.
Q2: What problems will a missing or improperly designed elevator pit cause?
A: A missing or improperly designed elevator pit can cause unstable elevator operation, increased wear and tear, frequent failures, and higher maintenance costs.
Q3: How can I ensure that the design of the elevator pit complies with building regulations?
A: To ensure compliance with local building regulations and elevator installation standards, it’s recommended to consult a professional elevator designer or engineer to design and review the plans.
Q4: What should be considered when constructing an elevator pit?
A: Ensure that the foundation is stable, waterproofing is done properly, the size meets elevator design requirements, and construction accuracy is maintained.
Q5: How does the elevator pit design affect the maintenance cost of the elevator system?
A: Proper elevator pit design reduces elevator failures, lowers maintenance frequency, and extends the elevator’s service life.
